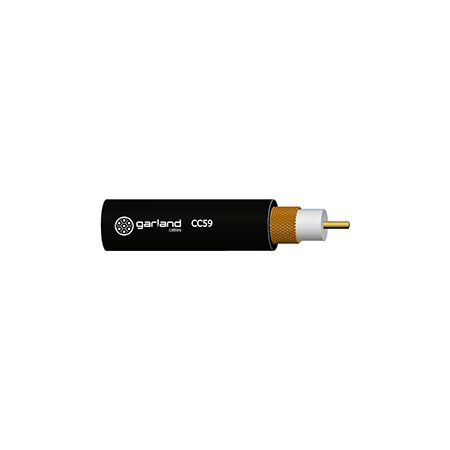

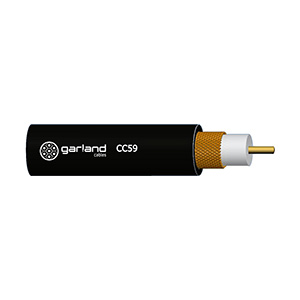

Coaxial Cable Low Loss RG59 | 75Ω Impedance | 500m Length | PVC Outer Sheath | by Madison
Coaxial Cable Low Loss RG59 is designed for optimal signal transmission with a 75Ω characteristic impedance, making it ideal for communication and signal control systems. Built with a durable PVC outer sheath and solid PE insulation, this 500m cable ensures reliable performance in various environments, withstanding temperatures from -15 to 70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coaxial Cable Low Loss RG59 | 75Ω Impedance | 500m Length | PVC Outer Sheath | by Madison
Brand: Madison
SKU: CC59500
Alternatively Known As: RG59 Coaxial Cable, Low Loss Coax Cable, 75 Ohm Coax Cable, Communication Cable
Technical Specifications
- Conductor: 1 core, 23 AWG BC (Bare Copper)
- Conductor diameter: 0.6mm
- Insulation: Solid PE, 1.5mm thickness, 3.7mm nominal OD
- Braiding: 0.84
- Outer sheath: PVC, black, 0.9mm thickness, 6.2mm nominal OD
- Max conductor DC resistance @ 20°C: 62Ω/km
- Nominal characteristic impedance @ 1MHz: 75±3Ω
- Minimum insulation resistance @ 20°C: 1,000 MΩ.km
- Voltage test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
- Operating temperature range: -15 to 70°C
- Max recommended pulling tension: 107N
- Minimum bend radius (install): 62mm
- Approximate mass: 5.5kg per 100m
- Dimensions (H x L x W): 218mm x 500000mm x 390mm
- Weight: 27.5 kg
Key Features
- Low loss RG59 coaxial cable with 75Ω characteristic impedance
- Compliant with UL758 standard
- RoHS compliant
- Single core conductor with 23 AWG BC material
- Solid PE insulation with 1.5mm nominal thickness
- PVC outer sheath in black with 0.9mm nominal thickness
- High elongation and tensile strength for durability
- Voltage test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
- Operating temperature range from -15 to 70°C
- Max recommended pulling tension of 107N
- Minimum bend radius of 62mm for installation
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure proper handling and compliance with electrical standards.
Applications
- Signal control systems
- Communication systems
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials reduce need for frequent replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.
Available Now
The Madison Coaxial Cable Low Loss RG59 75Ω 500m is available for immediate purchase, ideal for signal control and communication system installations.
