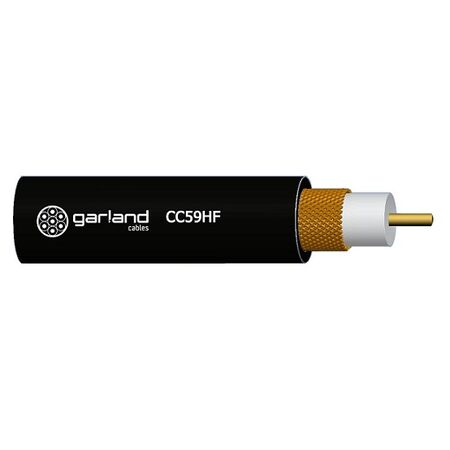

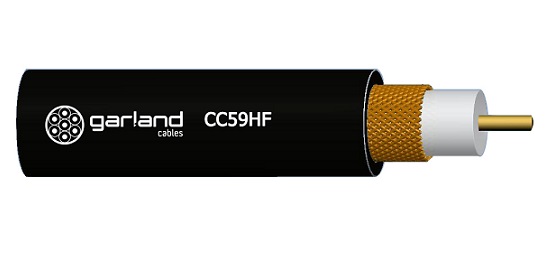

Coaxial Cable Low Loss RG59 75Ω LSZH | 23 AWG BC Conductor | Solid PE Insulation | 3000m Length | by Madison
Coaxial Cable Low Loss RG59 75Ω LSZH is designed for optimal signal transmission in communication systems. Featuring a 23 AWG bare copper conductor and solid PE insulation, this cable ensures low loss and high performance. With an LSZH outer sheath, it provides safety by reducing toxic emissions in case of fire, making it ideal for professional installations in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coaxial Cable Low Loss RG59 75Ω LSZH | 23 AWG BC Conductor | Solid PE Insulation | by Madison
Brand: Madison
SKU: CC59HF500
Alternatively Known As: RG59 Coaxial Cable, Low Loss RG59 Cable, LSZH Coaxial Cable, 75 Ohm Coax Cable
Technical Specifications
- Conductor: 1 core, 23 AWG BC (Bare Copper)
- Insulation: Solid PE, 1.5mm thickness
- Outer Sheath: LSZH, black color, 1mm thickness
- Nominal Outer Diameter: 6.2mm
- Max Conductor DC Resistance @ 20°C: 62.0Ω/km
- Nominal Characteristic Impedance @ 1MHz: 75±3Ω
- Operating Temperature Range: -25°C to +90°C
- Minimum Bend Radius (Installation): 62mm
- Approximate Mass: 5.5kg per 100m
- Pack Type: Wooden Reel
- Dimensions (H x L x W): 22mm x 3000mm x 39mm
- Weight: 5.5 kg
Key Features
- Low loss RG59 coaxial cable
- LSZH (Low Smoke Zero Halogen) outer sheath for safety
- Single core conductor with 23 AWG BC material
- Solid PE insulation with 1.5mm nominal thickness
- 75Ω characteristic impedance
- Operating temperature range from -25°C to +90°C
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure signal integrity and compliance with safety standards.
Applications
- Signal control systems
- Communication systems
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- LSZH outer sheath reduces toxic smoke and halogen emissions in case of fire
- RoHS compliant, free from hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Madison Coaxial Cable Low Loss RG59 75Ω LSZH 3000 is available for immediate purchase, ideal for signal control and communication system applications.
