Coaxial Cable Tester | Coax Explorer™ 2 | LED Indicators & Red Remote | by Wattmaster
The Coaxial Cable Tester is designed for testing and mapping coaxial cables like RG59, RG6/6Q, RG7, and RG11. With LED indicators for PASS, OPEN, and SHORT conditions, it simplifies cable identification. Ideal for technicians and DIY users, this compact tester includes a red remote for easy cable location identification, making it perfect for both residential and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coaxial Cable Tester | Coax Explorer™ 2 | LED Indicators & Red Remote | by Wattmaster
Brand: Wattmaster
SKU: A-VDV512-100
Alternatively Known As: Coaxial Cable Tester, Coax Cable Continuity Tester, Cable Mapper, Wire Tracer for Coaxial Cables
Technical Specifications
- Tests coaxial cables: RG59, RG6/6Q, RG7, RG11
- LED indicators for PASS, OPEN, SHORT cable conditions

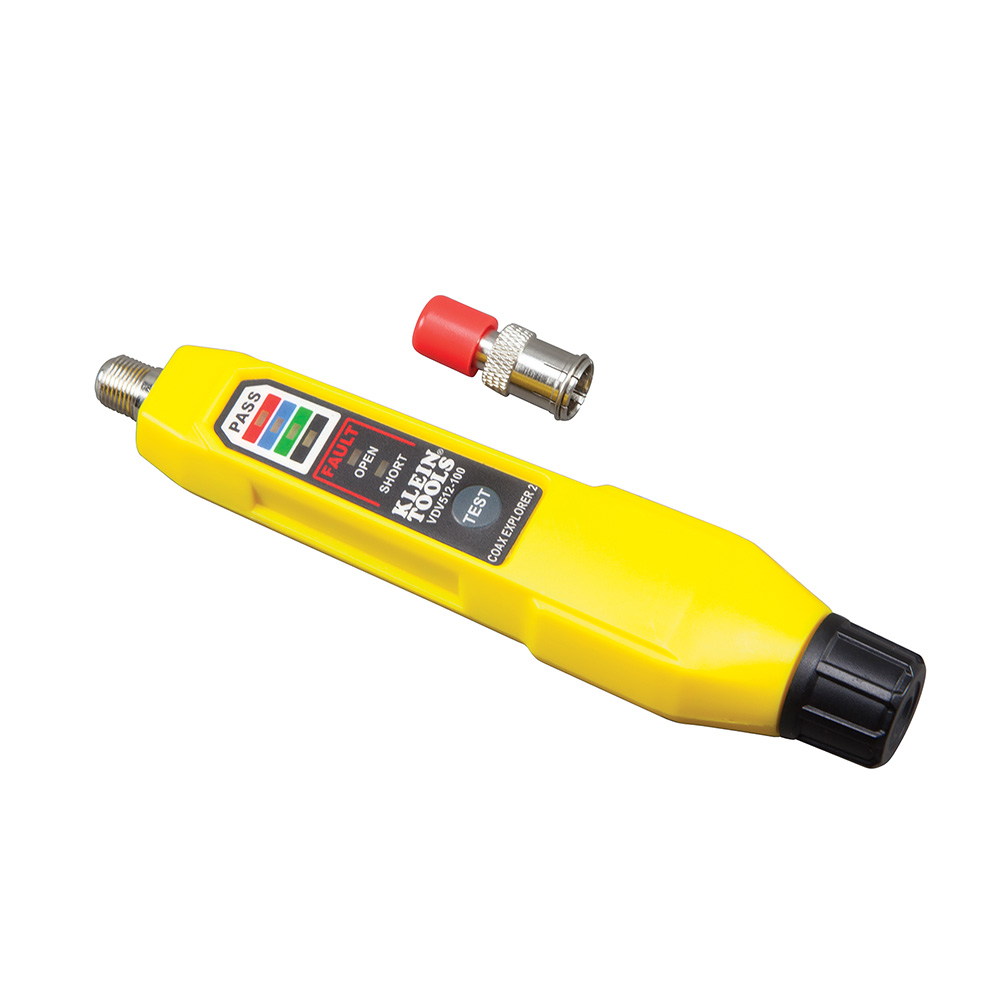

- Includes one red remote for cable location identification
- Supports up to four cables with additional remotes (sold separately)
- Powered by 2 x AAA batteries
- Compact size: 146mm length x 32mm width x 25mm height
- Weight: 85 grams
- Connection type: Coax F-adaptors
- Does not work through cable splitters
- Dimensions (H x L x W): 25mm x 146mm x 32mm
- Weight: 0.1 kg

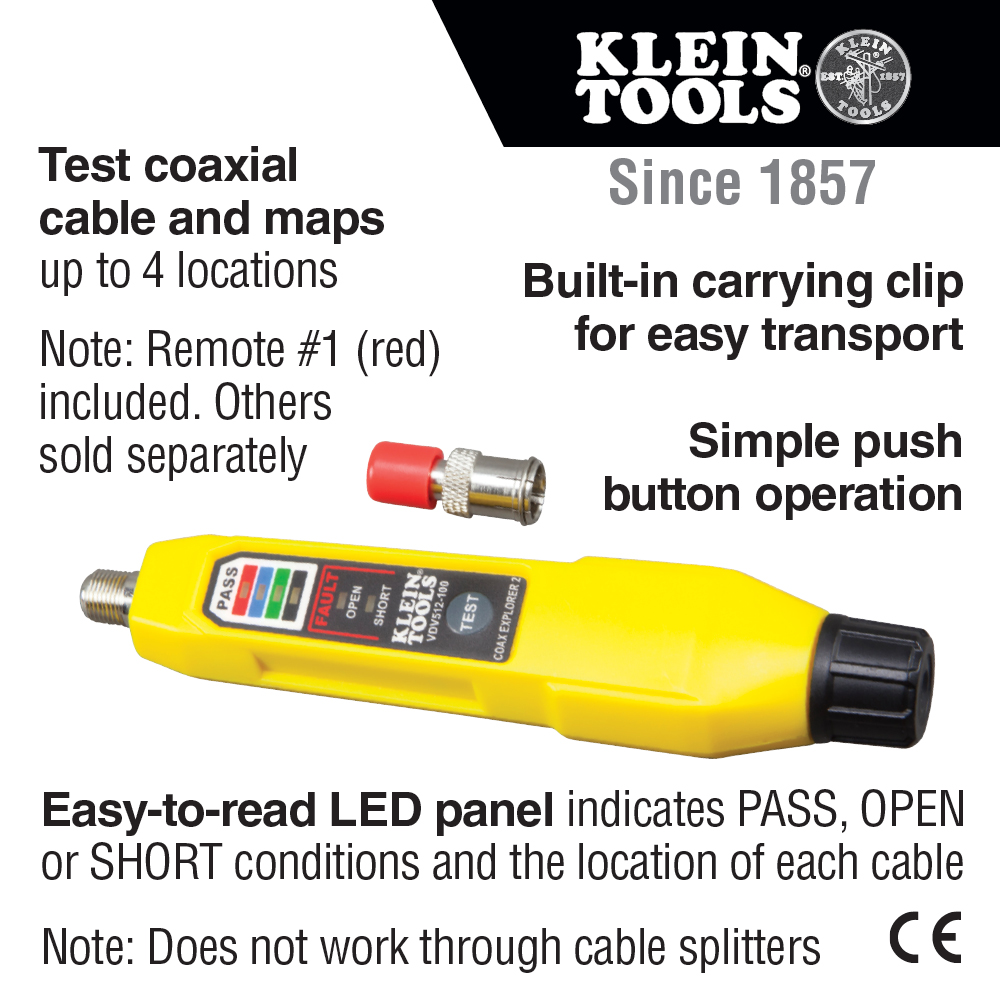

Key Features
- Tests and maps coaxial cables with simple push-button operation
- LED panel indicates PASS, OPEN, or SHORT conditions for easy cable identification
- Includes one red remote for cable location identification
- Supports up to four cables with additional colour-coded remotes (sold separately)
- Compact, pocket-sized design with carrying clip for easy transport
- Uses two replaceable AAA batteries
Professional Installation Requirements
- No professional installation required. Suitable for use by technicians and DIY users familiar with coaxial cable systems.
Applications
- Wire tracing and testing of coaxial cables including RG59, RG6/6Q, RG7, RG11
- Mapping cable location in residential and commercial coaxial cable installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps reduce cable waste by accurately identifying cable faults and locations
- Battery-powered with replaceable batteries to extend product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Coax Explorer™ 2 Cable Tester with Batteries and Red Remote is available now for immediate purchase. Ideal for telecommunications, cable installation, and maintenance professionals.
