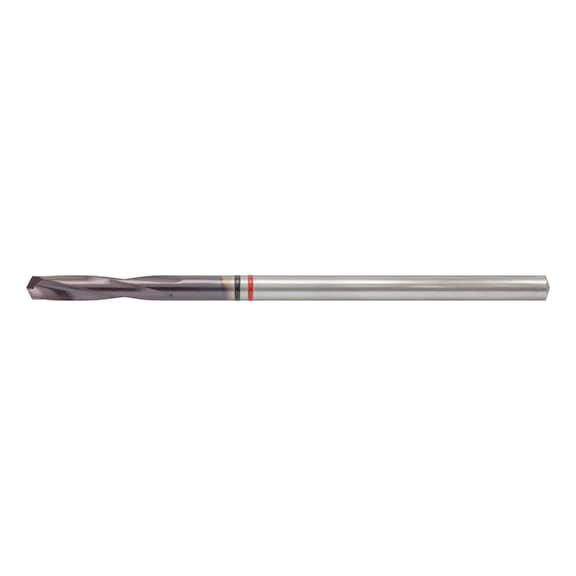

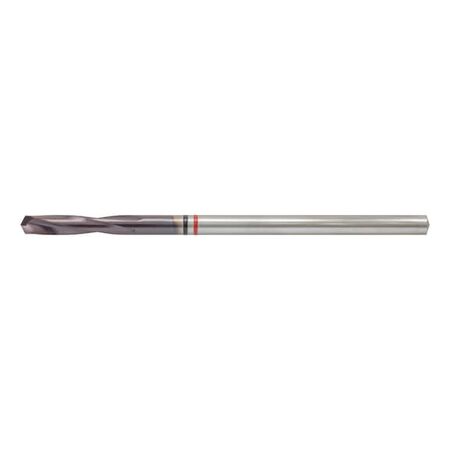

Cobalt Drill Bit 1.5mm | Magma Coated | High-Speed Steel | Exceptional Durability | by Wurth
The Cobalt Drill Bit 1.5mm is engineered for machining hard and tough materials, featuring a special magma multi-layer coating and 8% cobalt alloy for enhanced durability. With exceptional drilling stability and a service life rating of 4 out of 4 points, this bit is perfect for professionals using cordless screwdrivers and pedestal drilling machines, ensuring optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine, Milling/drill center
- Material to be processed: Hard and tough materials
- Quality: ZEBRA-Premium
- Standard / drilling depth: CS / 3xD
- Diameter: 1.5 mm
- Length: 40 mm
- Chip flute length: 9 mm
- Shank diameter: 1.5 mm
- Shank style: Cylindrical
- Surface: Magma multilayer coating
- Cutting material: HSCo8 (8% cobalt alloy)
- Type: RH
- Angle of the tip: 135 degrees
- Service life rating: 4 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill rating: 4 of 4 points
- Suitable for cordless drills rating: 4 of 4 points
- Suitable for upright drilling machine rating: 4 of 4 points
- Suitable for milling-drilling centre rating: 3 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1550 N/mm²
- Material sub-groups: Alloyed tempering steels, nitriding steels, tool steels, high-speed steels, cast iron, ductile iron, malleable cast iron, titanium, titanium alloys, Hardox, spring steels, bronze (short and long-chipping), brass (short-chipping)
- Dimensions (H x L x W): 40mm x 40mm x 1.5mm
- Weight: 0.1 kg
Key Features
- Exceptionally high drilling stability and cutting force with up to 9x longer service life and 50% faster cutting speed compared to uncoated drill bits
- Extra-high resistance to breakage and heat-resistant up to 800°C
- Special magma multi-layer coating combined with 8% cobalt alloy
- Optimal centring during work with no spinning in the drill chuck for faster and more comfortable operation
- 3-flat shank design from diameter 4 mm for optimal power transmission and protection of the drill chuck
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Recommended use with appropriate drilling machines such as cordless screwdrivers, pedestal drilling machines, and milling/drill centers by trained professionals for optimal performance.
Applications
- Machining hard and tough materials including alloyed tempering steels, nitriding steels, tool steels, high-speed steels, cast iron, ductile iron, malleable cast iron, titanium and titanium alloys
- Suitable for drilling materials like Hardox, spring steels, bronze (short and long-chipping), and brass (short-chipping)
- Used in excavator shovels, lorry attachments, armour plating, snow ploughs, agricultural machinery
- Ideal for holes in conventional steels requiring long service life
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical safety in machine operation environments
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic from household waste
- 100% recyclable packaging reduces environmental impact
Warranty Information
Wurth provides quality assurance with premium ZEBRA-Premium quality and a service life rating of 4 out of 4 points.
Available Now
The Wurth Magma Multi-Layer Coated Cobalt Drill Bit 1.5mm is available for immediate purchase, ideal for machining hard and tough materials in industrial and manufacturing applications.
