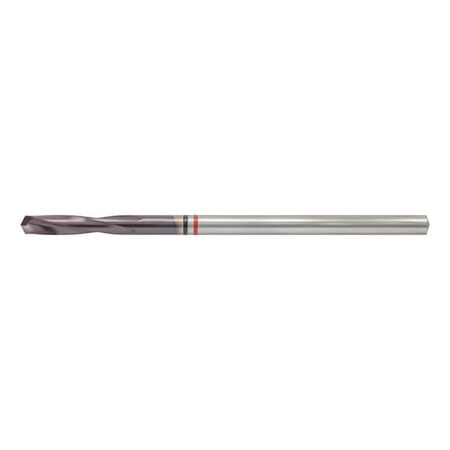

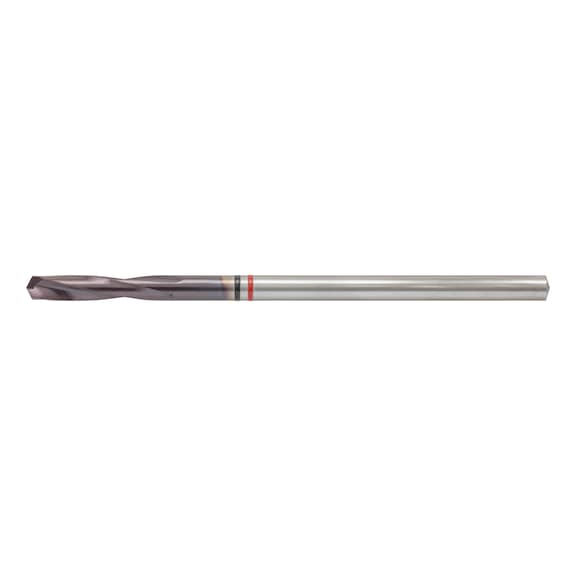

3.2mm Cobalt Drill Bit | Magma Coating | High-Speed Steel | 135° Tip Angle | by Wurth
The 3.2mm Cobalt Drill Bit is engineered for exceptional drilling stability and cutting force, making it ideal for machining hard materials like alloyed steels and titanium. With a special magma multi-layer coating and 8% cobalt alloy, it offers up to 9x longer service life and 50% faster cutting speed compared to uncoated bits. Perfect for use in drills and milling machines, this drill bit ensures optimal centering and minimal effort during operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3.2mm Cobalt Drill Bit | Magma Coating | High-Speed Steel | 135° Tip Angle | by Wurth
Brand: Wurth
SKU: 618940320
Alternatively Known As: Cobalt drill bit, Magma coated drill bit, High-speed steel cobalt drill, 3.2mm drill bit for hard materials
Technical Specifications
- Diameter: 3.2 mm
- Length: 65 mm
- Chip flute length: 18 mm
- Shank diameter: 3.2 mm
- Shank style: Cylindrical
- Surface coating: Magma multilayer coating
- Cutting material: HSCo8 (8% cobalt alloy)
- Type: Right-hand (RH)
- Tip angle: 135 degrees
- Suitable for tensile strength up to 1550 N/mm²
- Self-centring: Yes
- Standard drilling depth: 3xD
- Service life rating: 4/4 points
- Drilling speed rating: 3/4 points
- Bore hole quality rating: 4/4 points
- Versatility rating: 2/4 points
- Drilling behaviour rating: 4/4 points
- Suitable for drills, cordless drills, upright drilling machines, and milling-drilling centres
- Dimensions (H x L x W): 65mm x 65mm x 3.2mm
- Weight: 0.1 kg
Key Features
- Exceptionally high drilling stability and cutting force with up to 9x longer service life and 50% faster cutting speed compared to uncoated drill bits.
- Extra-high resistance to breakage and heat-resistant up to 800°C.
- Special magma multi-layer coating combined with 8% cobalt alloy for durability.
- Optimal centring during work with minimal effort required to loosen and tighten the drill chuck.
- 3-flat shank design from diameter 4 mm to prevent spinning in the drill chuck and protect the chuck from damage.
- Product packaging made from 100% PCR recycled plastic and is fully recyclable.
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling and machining equipment by trained operators.
Applications
- Machining hard and tough materials including alloyed tempering steels, nitriding steels, tool steels, high-speed steels, cast iron, ductile iron, malleable cast iron, titanium and titanium alloys, Hardox, spring steels, bronze (short and long-chipping), and brass (short-chipping).
- Suitable for use in drills, cordless screwdrivers, pedestal drilling machines, and milling/drill centers.
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is 100% recyclable, reducing environmental impact.
Warranty Information
Wurth provides a quality guarantee under the ZEBRA-Premium standard ensuring high performance and durability.
Available Now
The Wurth Magma Multi-Layer Coated 3.2mm Cobalt Drill Bit is available for immediate purchase, ideal for machining hard and tough materials in industrial and workshop settings.
