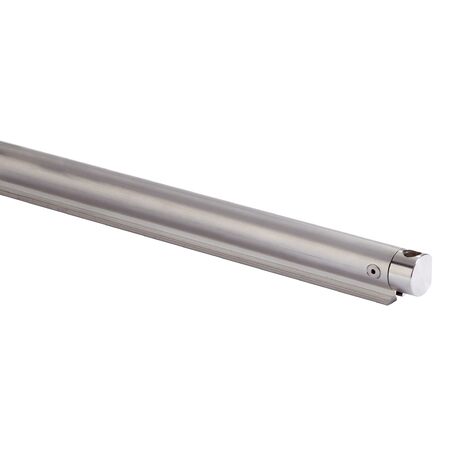

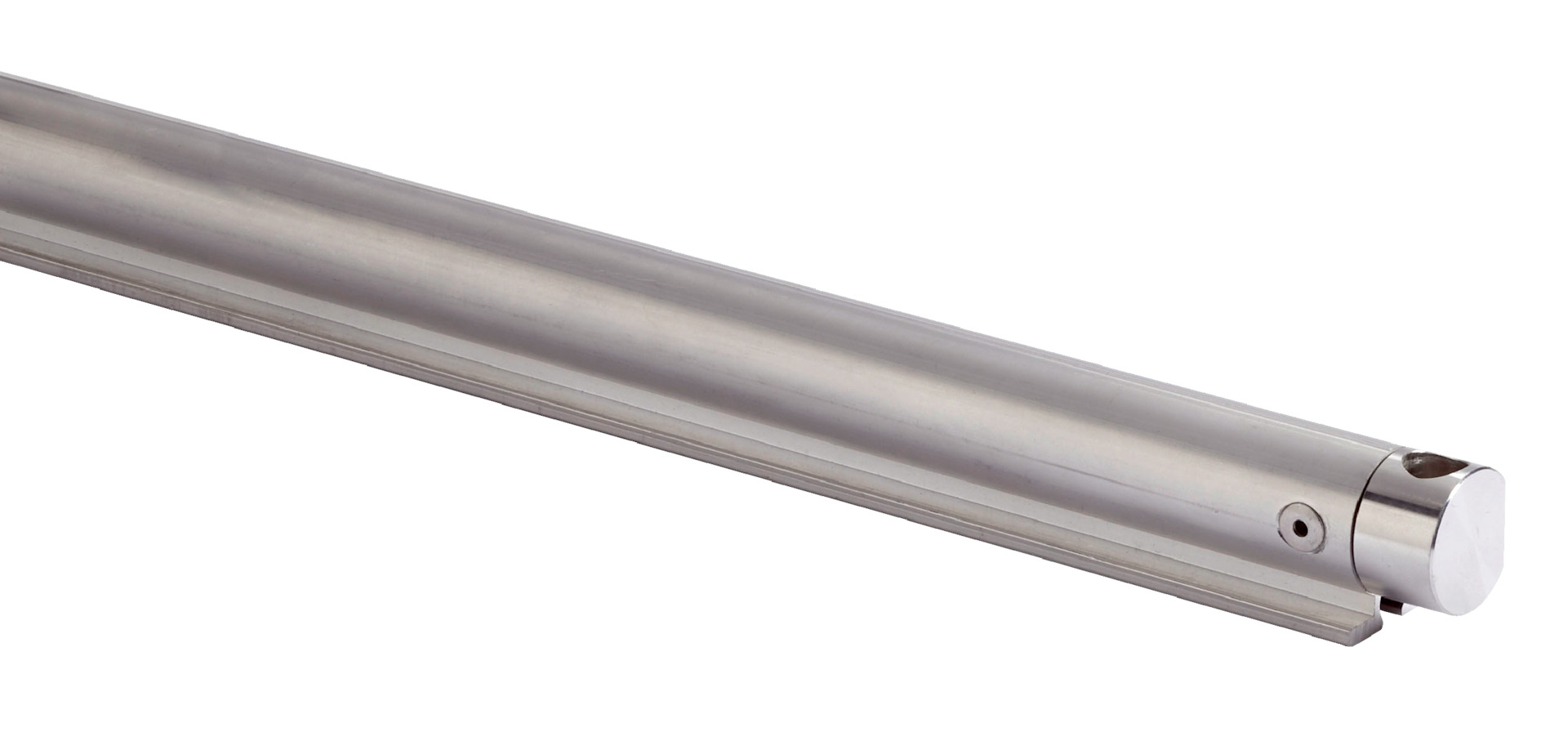

Coded Measuring Element KHT53-XXX00054 | 54m Measuring Range | Shock & Vibration Resistant | by SICK
The Coded Measuring Element KHT53-XXX00054 is designed for precise distance measurement up to 54 meters, making it ideal for industrial applications. With high shock resistance and vibration durability, this measuring tape is perfect for manufacturing plants and automation processes, ensuring accuracy and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coded Measuring Element KHT53-XXX00054 | 54m Measuring Range | Shock & Vibration Resistant | by SICK
Brand: SICK
SKU: 1035445
Alternatively Known As: Coded Measuring Element, Distance Measuring Element, Industrial Measuring Tape
Technical Specifications
- Measuring range: 0 m to 54 m
- Code type: Coded
- Weight: 0.65 kg per meter
- Length of measuring element: 1.408 m including distance
- Material: AlMgSi0,5F22
- Shock resistance: 50 g, 10 ms (DIN EN 61000-2-27)
- Vibration resistance: 30 g, 20 Hz to 250 Hz (DIN EN 61000-2-6)
- Dimensions (H x L x W): 20mm x 1408mm x 20mm
- Weight: 0.65 kg
Key Features
- Measuring range up to 54 meters
- Coded measuring element for accurate distance measurement
- High resistance to shocks (50 g, 10 ms) and vibration (30 g, 20 Hz to 250 Hz)
- Material: AlMgSi0,5F22 for durability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial measurement systems to ensure accuracy and safety.
Applications
- Industrial measurement and automation requiring precise distance measurement up to 54 meters
- Use in manufacturing plants for process control and monitoring
- Suitable for environments requiring coded measuring elements with high shock and vibration resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Complies with China-RoHS, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KHT53-XXX00054 coded measuring element is available for immediate purchase, ideal for industrial and manufacturing measurement applications.
