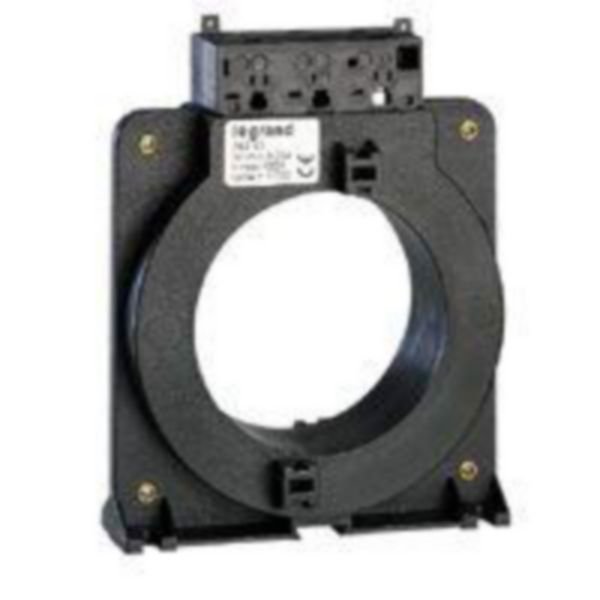

Coil Ø140 mm for DPX Residual Current Relay | Single-Phase Current Converter | Calibrated for Accurate Operation | @EA of 1 | by Legrand
The Coil Ø140 mm is designed for use with DPX³ trip-free switches and MCCBs, providing essential residual current protection. This single-phase current converter is calibrated for accurate operation and features a screw connection for secondary input, making it ideal for electrical switchboards and power cabinets. Enhance safety and compliance with this reliable component from Legrand.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coil Ø140 mm for DPX Residual Current Relay | Single-Phase Current Converter | Calibrated for Accurate Operation | @EA of 1 | by Legrand
Brand: Legrand
SKU: 026095
Alternatively Known As: Residual Current Relay Coil, DPX Coil 140mm, Legrand DPX Coil
Technical Specifications
- Model: Single-phase current converter
- Rated primary current: 250 A
- Rated secondary current: 0.3 A
- Overcurrent limiting factor: FS 5
- Calibrated: Yes
- Contact protection: Yes
- Opening diameter: 140 mm
- Snap mounting: No
- Secondary connection: Screw connection
- Number of primary inputs: 1
- Dimensions (H x L x W): 140mm x 50mm x 140mm
- Weight: 0.3 kg
Key Features
- Adds residual current protection to DPX³ trip-free switches and MCCBs
- Compatible with residual current relay Cat.No 0 260 88
- Single-phase current converter
- Calibrated for accurate operation
- Contact protection included
- Screw connection for secondary input
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ switchgear.
Applications
- Use with DPX³ trip-free switches and DPX³ MCCBs equipped with residual current relay
- Electrical switchboards and power cabinets requiring residual current protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and fires
- Supports energy-efficient electrical protection systems
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Coil Ø140 mm for DPX residual current relay is available for immediate purchase, ideal for enhancing safety in electrical switchboards and power cabinets.
