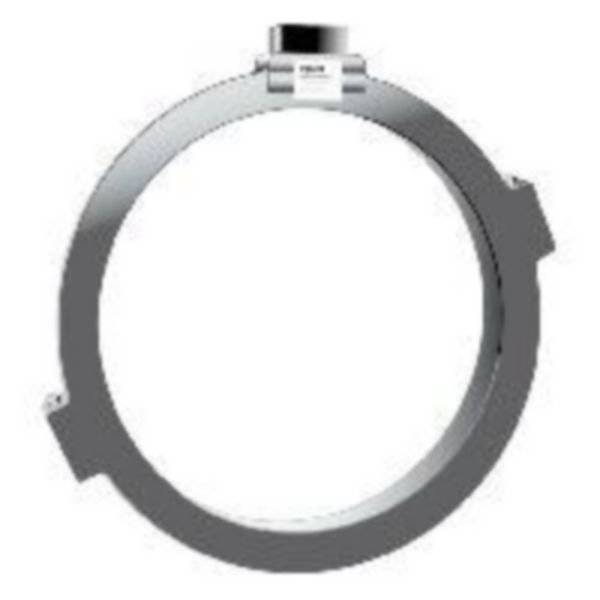

Coil Ø150 mm Open for DPX³ | 250A Primary Current | Calibrated with Contact Protection | @Each of 1 | by Legrand
The Coil Ø150 mm Open is designed for use with DPX³ trip-free switches and MCCBs, providing essential residual current protection. With a rated primary current of 250A and calibrated for precise operation, this single-phase current converter enhances electrical safety in switchboards and power cabinets. Ideal for qualified electricians, it ensures compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: Single-phase current converter
- Rated primary current: 250 A
- Rated secondary current: 0.5 A
- Overcurrent limiting factor: FS 5
- Calibrated: Yes
- With contact protection: Yes
- Opening diameter: 150 mm
- Snap mounting: No
- Secondary connection: Screw connection
- Number of primary inputs: 1
- Dimensions (H x L x W): 50mm x 150mm x 150mm
- Weight: 0.3 kg
Key Features
- Adds residual current protection to DPX³ trip-free switches and MCCBs
- Compatible with residual current relay Cat.No 0 260 88
- Single-phase current converter
- Rated primary current: 250 A
- Rated secondary current: 0.5 A
- Overcurrent limiting factor FS 5
- Calibrated for precise operation
- Includes contact protection
- Opening diameter: 150 mm
- Secondary connection via screw connection
- One primary input
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX circuit breakers.
Applications
- Use with DPX³ trip-free switches and DPX³ MCCBs equipped with residual current relay
- Electrical switchboards and power cabinets requiring residual current protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and potential fire hazards
- Supports energy-efficient electrical protection systems
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
Legrand Coil Ø150 mm Open is available for immediate purchase, ideal for enhancing residual current protection in switchboards and power cabinets.
