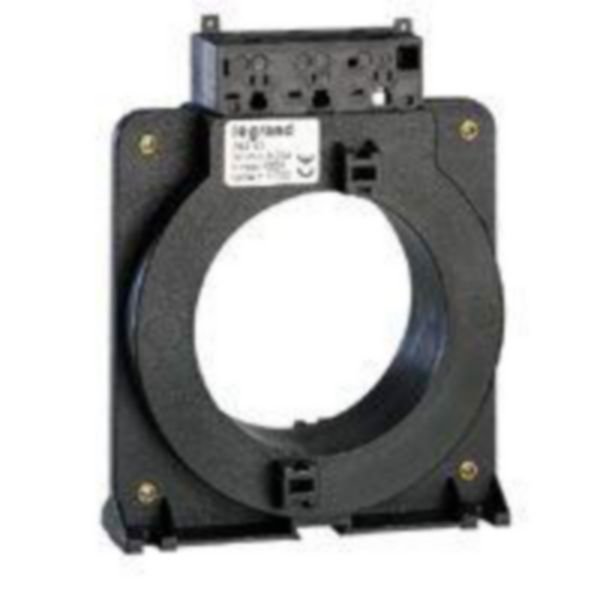

Coil Ø210 mm for DPX³ Circuit Breakers | Single-Phase Current Converter | Calibrated & Contact Protection | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 026096
$825.50 List price: $1,028.70
+ −
30 Days Return Delivery Options
The Coil Ø210 mm is designed for use with DPX³ circuit breakers, providing reliable residual current protection. This single-phase current converter coil features calibrated precision and contact protection, making it ideal for electrical switchboards and power cabinets. Ensure safety and compliance with AS/NZS 3000 standards while enhancing your electrical systems.

Product Name/Title: Coil Ø210 mm for DPX³ Circuit Breakers | Single-Phase Current Converter | Calibrated & Contact Protection | @Each of 1 | by Legrand

Brand: Legrand

SKU: 026096

Alternatively Known As: Residual Current Relay Coil, DPX Coil 210mm, Legrand DPX Coil

Technical Specifications
  • Model: Single-phase current converter
  • Rated primary current: 400 A
  • Rated secondary current: 0.3 A
  • Overcurrent limiting factor: FS 5
  • Calibrated: Yes
  • Contact protection: Yes
  • Opening diameter: 210 mm
  • Snap mounting: No
  • Secondary connection: Screw connection
  • Number of primary inputs: 1
  • Dimensions (H x L x W): 50mm x 210mm x 210mm
  • Weight: 0.5 kg
Key Features
  • Designed for residual current protection in DPX³ circuit breakers
  • Single-phase current converter coil
  • Calibrated for precise operation
  • Contact protection included
  • Screw connection for secondary wiring
  • Opening diameter of 210 mm
  • Compatible with residual current relay Cat.No 0 260 88
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ circuit breakers.
Applications
  • Use with DPX³ trip-free switches and DPX³ MCCBs equipped with residual current relay
  • Electrical switchboards and power cabinets requiring residual current protection
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical safety reducing risk of electrical faults and fire hazards
  • Supports energy-efficient circuit protection systems
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

Available for immediate purchase, ideal for upgrading or maintaining residual current protection in electrical switchboards and power cabinets.
