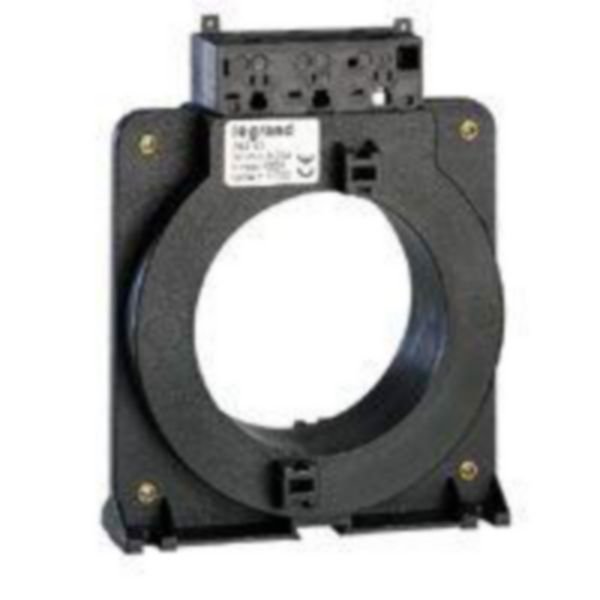

Coil Ø35 mm for DPX Circuit Breakers | 70A Rated Current | Contact Protection | @EA of 1 | by Legrand
The Coil Ø35 mm is designed for use with DPX³ circuit breakers, providing reliable residual current protection. With a rated primary current of 70A and equipped with contact protection, this single-phase current converter ensures precise operation and safety in electrical switchboards and power cabinets. Ideal for professional installation by qualified electricians, it enhances electrical safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: Single-phase current converter
- Rated primary current: 70 A
- Rated secondary current: 0.03 A
- Overcurrent limiting factor: FS 5
- Calibrated: Yes
- Contact protection: Yes
- Opening diameter: 35 mm
- Secondary connection: Screw connection
- Number of primary inputs: 1
- Snap mounting: No
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- Designed for residual current protection in DPX³ circuit breakers
- Single-phase current converter coil with 35 mm opening diameter
- Calibrated for precise operation with rated primary current of 70 A
- Equipped with contact protection and screw secondary connection
- Overcurrent limiting factor FS 5
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX circuit breakers.
Applications
- Use with DPX³ trip-free switches and DPX³ MCCBs equipped with residual current relay
- Electrical switchboards and power cabinets requiring residual current protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and fires
- Supports energy-efficient circuit protection systems
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Coil Ø35 mm for DPX residual current relay is available for immediate purchase, ideal for enhancing safety in electrical switchboards and power cabinets.
