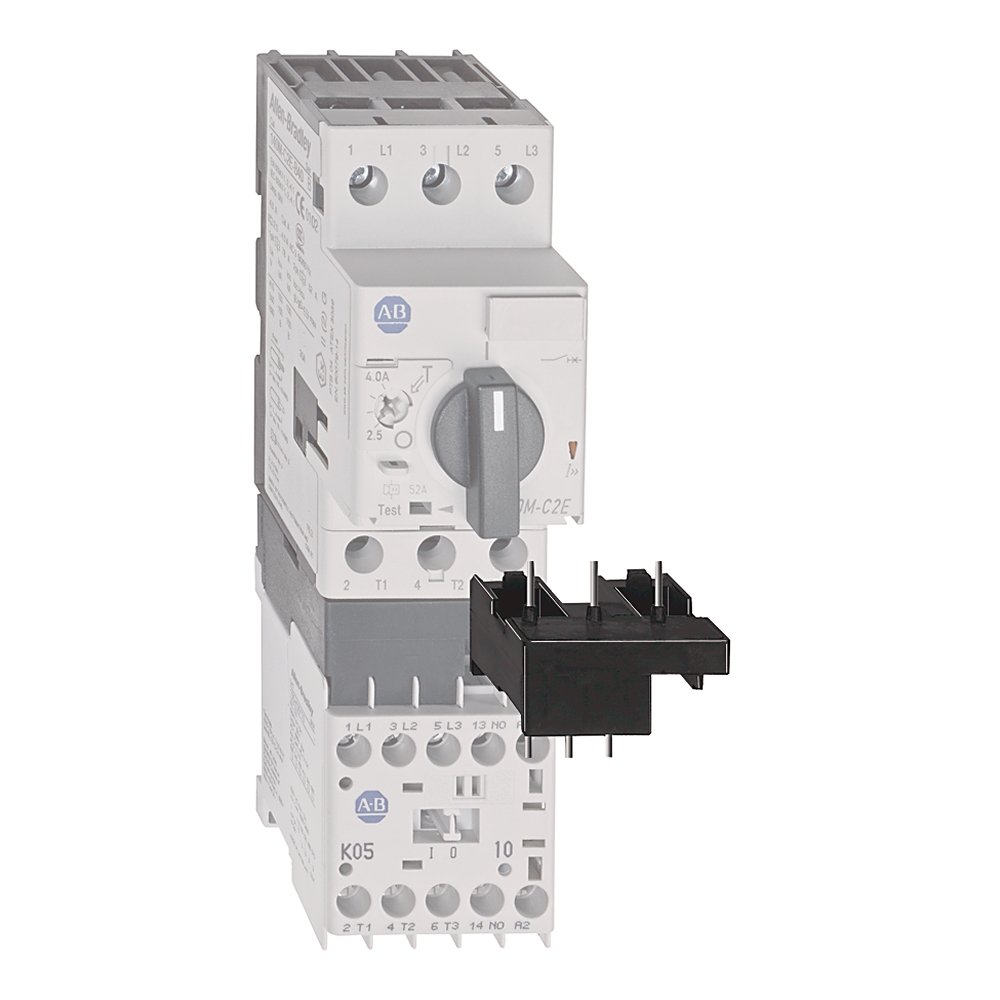

Coil Extension Module 100-C09-23 Extends Relay Connections Compact Design Reliable Performance by Allen-Bradley
The Coil Extension Module 100-C09-23 is designed to extend coil connections for relays and contactors, making it ideal for industrial automation systems and control panel assemblies. Built with high-quality electrical grade plastic and metal contacts, this module ensures reliable electrical performance and easy integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Coil Extension Module, Relay Coil Extender, Contact Extension Module
Technical Specifications
- Model Number: 100-C09-23
- Function: Coil extension for relays
- Compatibility: Allen-Bradley relay systems
- Material: High-quality electrical grade plastic and metal contacts
- Dimensions (H x L x W): 25mm x 75mm x 50mm
- Weight: 0.3 kg
Key Features
- Extends coil connections for relays and contactors
- Compact design for easy integration
- Reliable electrical performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation systems
- Control panel assemblies
- Electrical relay control extensions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Allen-Bradley COIL EXTENSION MODULE 100-C09-23 is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
