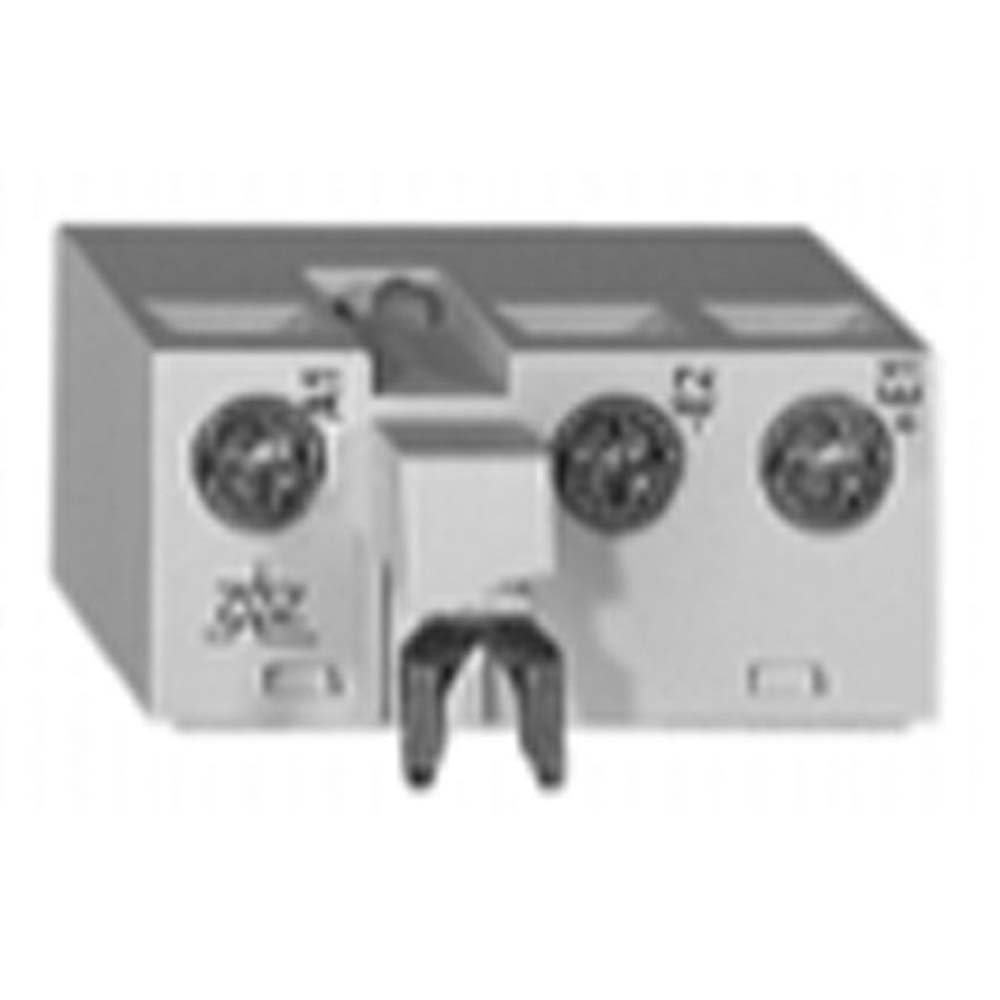

Coil Interface Module 18-30V DC for 100-C 110-240VAC Coils | Reliable Voltage Conversion | Electrical Isolation | by Allen-Bradley
The Coil Interface Module 18-30V DC is designed for seamless integration with Allen-Bradley 100-C series contactors, converting DC control signals to 110-240VAC for reliable coil operation. Ideal for industrial automation systems and control panels, this module ensures electrical isolation and enhances energy efficiency, making it a crucial component for electrical control and switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Coil Voltage Interface Module, DC to AC Coil Converter, Allen-Bradley Coil Adapter
Technical Specifications
- Input Voltage: 18-30V DC
- Output Voltage: 110-240VAC for coil operation
- Compatible with Allen-Bradley 100-C coil series
- Provides electrical isolation between control and coil circuits
- Operating Temperature Range: -20°C to 60°C
- Dimensions (H x L x W): 90mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Interfaces 18-30V DC control signals to 110-240VAC coils
- Compatible with Allen-Bradley 100-C series contactors
- Provides reliable coil voltage conversion and isolation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation systems
- Control panels requiring coil voltage interface
- Electrical control and switching applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by enabling precise coil control
- Reduces electrical waste by extending coil life through proper voltage matching
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Allen-Bradley Coil Interface Module 18-30V DC for 100-C 110-240VAC Coils is available now for immediate purchase. Ideal for industrial control and automation systems requiring coil voltage interfacing.
