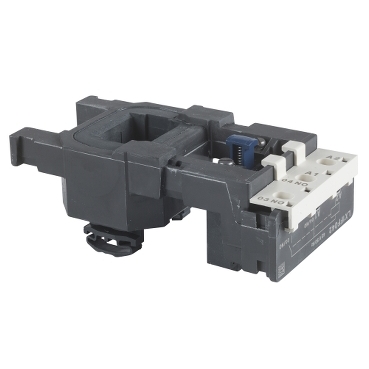

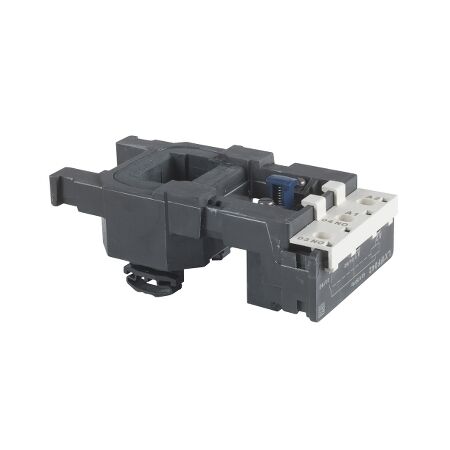

Coil LX1F 380-400V AC | Replacement for TeSys F Contactors | High Electrical Endurance | Easy Installation | @Pack of 1 | by Clipsal
The Coil LX1F 380-400V AC is designed as a reliable replacement for TeSys F series contactors, ensuring high electrical endurance and easy installation. Ideal for industrial control panels and automation systems, this coil operates efficiently at 50Hz and 60Hz, making it perfect for heavy-duty applications. With a robust design, it guarantees long operational life and energy-efficient performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coil LX1F 380-400V AC | Replacement for TeSys F Contactors | High Electrical Endurance | Easy Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLX1FF380
Alternatively Known As: TeSys F Contactor Coil, Schneider LX1FF380, Contactor Replacement Coil, LX1F 380-400V Coil, SCHLX1FF380
Technical Specifications
- Coil voltage: 380–400V AC at 50Hz
- Coil voltage: 460–480V AC at 60Hz
- Compatible with TeSys F series contactors
- High electrical endurance
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 40mm x 100mm x 80mm
- Weight: 0.25 kg
Key Features
- Replacement coil for TeSys F series contactors
- Voltage rating: 380–400V AC at 50Hz, 460–480V AC at 60Hz
- Reliable and robust design for heavy-duty applications
- Easy installation and maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial control panels
- Motor starters
- Switchboards
- Automation systems
- Replacement coil for TeSys F series contactors
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Energy-efficient operation in control circuits
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys F Contactor Coil LX1FF 380-400V AC (SCHLX1FF380) is available for immediate purchase. Ideal for industrial control panels, automation systems, and motor starter applications.
