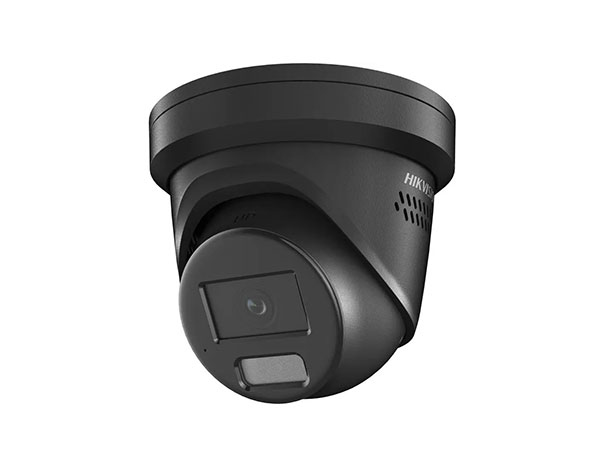

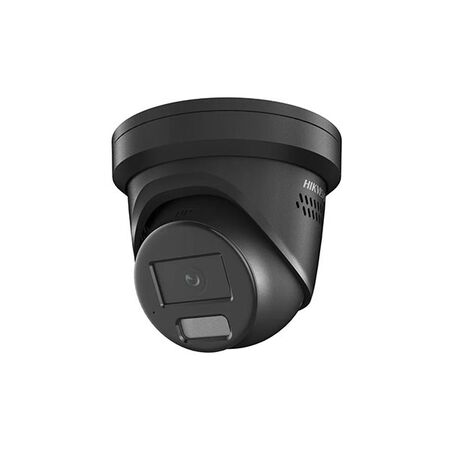

ColorVu Hybrid Turret Camera 6MP 2.8mm Black Hikvision
Hikvision ColorVu hybrid turret camera features 6MP resolution, a 2.8mm lens and a black finish. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision ColorVu Hybrid Turret Camera, Hikvision 6MP CCTV Turret Camera, DS-2CD2367G2H-LIU Black
Technical Specifications
- Model: DS-2CD2367G2H-LIU(2.8mm)/Black
- Resolution: 6MP, 3200 × 1800 maximum ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/sm000061191/DS-2CD2367G2H-LIU_Datasheet_20240417.pdf))
- Image Sensor: 1/1.8-inch progressive scan CMOS ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/sm000061191/DS-2CD2367G2H-LIU_Datasheet_20240417.pdf))
- Lens: Fixed 2.8mm focal length
- Lens Aperture: F1.0
- Field of View: 108.8° horizontal, 56.4° vertical, 134.3° diagonal ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/sm000061191/DS-2CD2367G2H-LIU_Datasheet_20240417.pdf))
- Low-Light Performance: 0.0005 lux in colour at F1.0; 0 lux with supplemental light
- Supplemental Light: Smart IR and white light, up to 30m
- Wide Dynamic Range: 130dB WDR
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Frame Rate: Up to 25fps at 3200 × 1800 in 50Hz mode
- Audio: Built-in microphone with noise filtering
- Storage: microSD, microSDHC or microSDXC up to 512GB
- Network Interface: 10/100M self-adaptive RJ45 Ethernet
- Power: 12VDC or PoE IEEE 802.3af Class 3, maximum 8W ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/sm000061191/DS-2CD2367G2H-LIU_Datasheet_20240417.pdf))
- Ingress Protection: IP67, IEC 60529:2013 ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/sm000061191/DS-2CD2367G2H-LIU_Datasheet_20240417.pdf))
- Housing: Metal cover and metal main body
- Operating Temperature: -30°C to 60°C
- Dimensions (H x L x W): 115.4mm x 138.3mm x 138.3mm
- Weight: 0.77 kg
Key Features
- 6MP high-resolution imaging for CCTV and security applications
- ColorVu technology for 24/7 colour imaging in low-light conditions
- Smart Hybrid Light automatically switches between IR and white-light illumination
- 2.8mm fixed lens providing a wide viewing angle
- 130dB WDR for improved detail in high-contrast scenes
- Deep-learning human and vehicle classification
- Built-in microphone for real-time audio monitoring
- H.265+ compression reduces storage and bandwidth requirements
- Supports PoE for simplified network installation
- IP67-rated housing for indoor and outdoor installations
Professional Installation Requirements
- Installation should be performed by a competent CCTV or network-security installer. PoE/network cabling, mounting and configuration must be completed in accordance with applicable electrical, communications and site-safety requirements.
Applications
- Residential CCTV and perimeter monitoring
- Commercial premises and retail security
- Warehouses, workshops and industrial sites
- Entry points, driveways and car parks
- Low-light indoor and outdoor surveillance
- Security systems requiring human and vehicle classification
Standards & Compliance
- RCM compliance to AS/NZS CISPR 32:2015 is specified in the Hikvision datasheet. ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/sm000061191/DS-2CD2367G2H-LIU_Datasheet_20240417.pdf))
- Safety approvals include IEC 62368-1 and UL 62368-1; Australian installation should use compliant power supplies and network equipment. ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/sm000061191/DS-2CD2367G2H-LIU_Datasheet_20240417.pdf))
Environmental Benefits
- RoHS compliance restricts the use of certain hazardous substances. ([assets.hikvision.com](https://assets.hikvision.com/prd/public/all/doc/sm000061191/DS-2CD2367G2H-LIU_Datasheet_20240417.pdf))
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with older compression methods.
- Metal housing and IP67 protection support extended service life and reduced replacement waste.
- PoE operation can simplify cabling and reduce the need for separate local power infrastructure.
Warranty Information
Hikvision warranty coverage applies when purchased through authorised Australian distribution channels. Australian distributor listings commonly specify a 3-year warranty for Hikvision network cameras; confirm the applicable terms with the supplying distributor. Hikvision’s published 5-year programme applies only to listed premium project-oriented product series and should not be assumed for this model. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/banner-/project-oriented-products/5-year-Warranty.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
