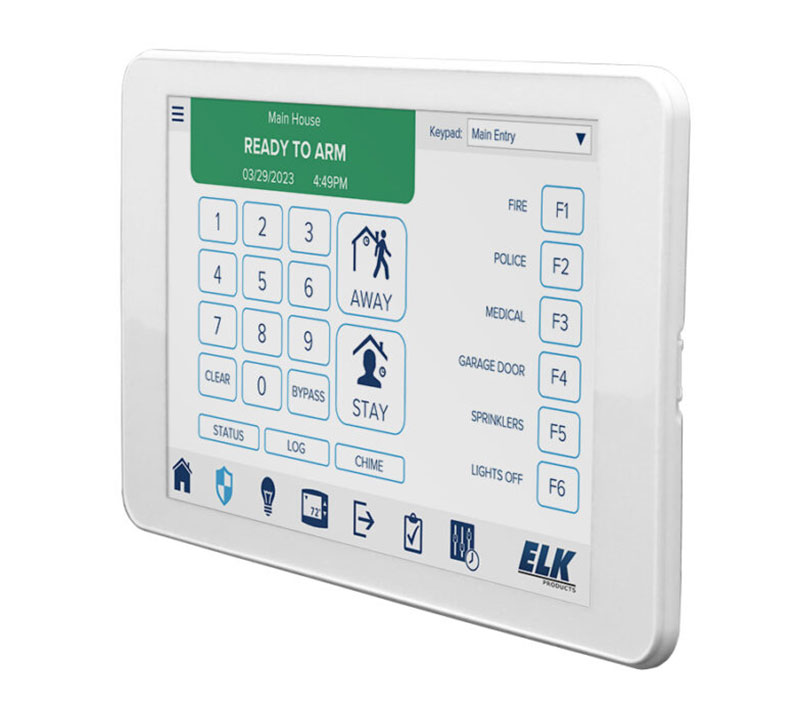

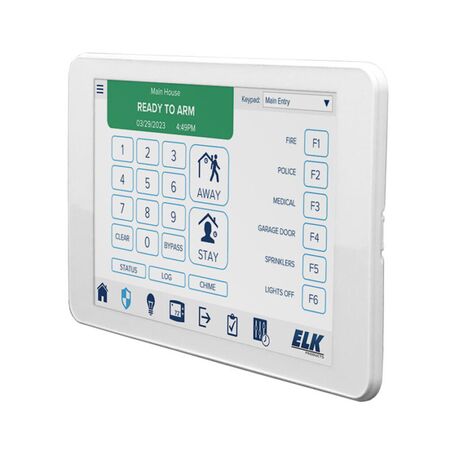

Colour Touch Screen 7 Inch to Suit M1 Ness

BRAND: Ness
SKU: 101-504
$635.90 List price: $847.90
+ −
30 Days Return Electricians Unlock Trade Access
Ness colour touch screen features a 7 Inch display to Suit the M1 alarm system. Ideal for M1 alarm system control.

Alternatively Known As: Ness M1 Colour Touchscreen, ELK 7TS M1 Touchscreen, M1 Network Touchscreen Keypad

Technical Specifications
  • Display Size: 7 inches
  • Display Resolution: 1024 x 600 pixels
  • Touchscreen: Capacitive, 5-point multi-touch
  • Screen Construction: G+G Gorilla Glass
  • Network Connectivity: 802.11b/g/n 2.4 GHz Wi-Fi
  • Ethernet Connectivity: Optional via 101-504-POE adapter
  • Power Requirement: 12 VDC, 1 A
  • Power Supply: Not included; Ness POW310 recommended
  • System Connection: LAN connection to network-enabled Ness M1 controller
  • Prerequisite: Ness M1XEP Ethernet module required
  • Included: Wall mounting plate, mounting hardware, 12 V wiring harness and quick-start card
  • Estimated Weight: Approximately 0.5 kg; manufacturer weight not published
  • Dimensions (H x L x W): 115mm x 192mm x 14mm
  • Weight: 0.5 kg
Key Features
  • 7-inch HD colour display for Ness M1 alarm and automation control
  • Responsive capacitive touchscreen with five-point multi-touch
  • Built-in 2.4 GHz Wi-Fi connectivity
  • Optional wired Ethernet and Power over Ethernet connection
  • Gorilla Glass front screen for improved resistance to everyday wear
  • Modern graphical interface for system status, arming, disarming, event history and automation control
  • Designed to complement existing physical M1 keypads
  • Supplied with wall mounting hardware and 12 V wiring harness
Professional Installation Requirements
  • Installation and commissioning should be completed by a suitably qualified security or electronics installer. The touchscreen requires 12 VDC wiring, network configuration and a network-enabled Ness M1 controller with M1XEP module. Install the associated alarm system in accordance with AS/NZS 2201.1:2007 where applicable.
Applications
  • Ness M1 residential security systems
  • Ness M1 commercial alarm systems
  • M1 security and automation control
  • Alarm status monitoring and arming/disarming
  • Control of programmed lighting, outputs, tasks and other M1 automation functions
Standards & Compliance
  • AS/NZS 2201.1:2007 — applicable to the design, installation, commissioning and maintenance context of intruder alarm systems; product-specific certification is not stated by the manufacturer
Environmental Benefits
  • Low-voltage 12 VDC operation can support lower energy use than continuously powered mains equipment
  • Durable Gorilla Glass screen construction may extend service life and reduce replacement waste
  • Network and Wi-Fi connectivity can reduce the need for additional dedicated control wiring in suitable installations
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase unless otherwise specified. Faulty products may be repaired or replaced at Ness Corporation's discretion, subject to the published warranty conditions.

Available Now

Available through Ness Corporation and authorised Australian security-system distributors, subject to current product availability.
