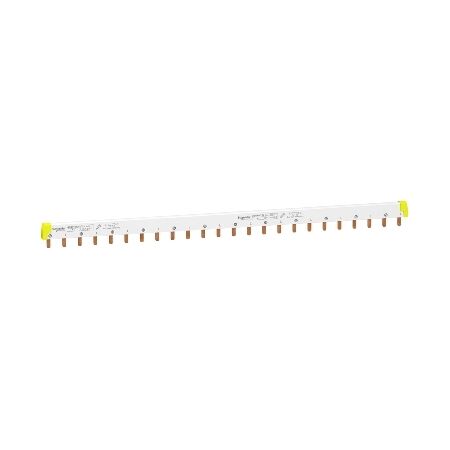

Comb Busbar 1L+N | 100A | 24 Modules | 18mm Pitch by Clipsal
Comb busbar with 1L+N configuration and 100A current rating—ideal for industrial and residential power distribution. Built for flexible installation, with cuttable design and 18mm pitch.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Comb Busbar, 1L+N, 18 mm pitch, 24 modules, 100 A
Brand: Clipsal
SKU: A9XPH224
Alternatively Known As: Comb Busbar, Busbar Connector, Electrical Busbar
Technical Specifications
- Rated operational voltage: 415 V AC
- IP Rating: IP20 with end-pieces and tooth covers
- Rated insulation voltage: 500 V AC conforming to IEC 61439-2
- Fire resistance: 960 °C (30 s) conforming to IEC 60695-2-1
- Pollution degree: 3 conforming to IEC 60947-7-1
- Mounting mode: horizontal
- Connection pitch: 18 mm
- Total number of 18 mm modules: 24
- Number of ways: 12 ways N + 1 L
- Dimensions (H x L x W): 56mm x 460mm x 430mm
- Weight: 0.166 kg
Key Features
- Comb busbar with 1L + N configuration for efficient power distribution.
- Rated operational current of 100 A at 40 °C.
- Cuttable design for flexible installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Electrical installations requiring reliable busbar connections
Standards & Compliance
- Complies with EN/IEC 61439-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard and without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Comb Busbar 1L+N 100A 24 Modules is available now for immediate purchase. Ideal for industrial and residential electrical installations.
