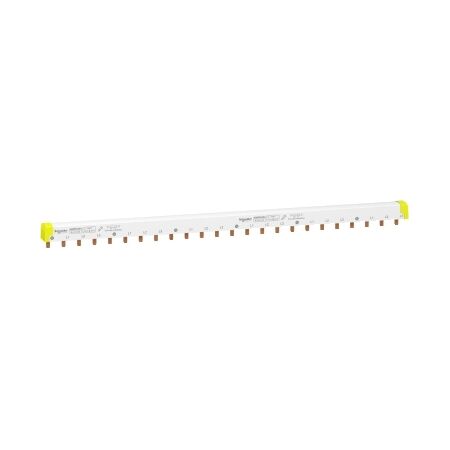

Comb Busbar 3L+N | 100A | 18mm Pitch | 24 Modules by Clipsal
Comb busbar with 100A current and 18mm pitch—ideal for industrial and residential power distribution. Built for efficient installations, with cuttable design for customization.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Comb Busbar, 3L+N, 18 mm pitch, 24 modules, 100 A
Brand: Clipsal
SKU: A9XPH424
Alternatively Known As: Comb Busbar, Busbar Connector, Power Distribution Busbar
Technical Specifications
- Rated operational voltage: 415 V AC
- IP Rating: IP20 with end-pieces and tooth covers
- Rated insulation voltage: 500 V AC conforming to IEC 61439-2
- Fire resistance: 960 °C (30 s) conforming to IEC 60695-2-1
- Pollution degree: 3 conforming to IEC 60947-7-1
- Mounting mode: horizontal
- Connector type: tooth
- Distance between ways: 72 mm
- Number of ways: 6 ways N + 3 L
- Dimensions (H x L x W): 56mm x 466mm x 430mm
- Weight: 0.289 kg
Key Features
- Comb busbar design for efficient power distribution.
- Cuttable for customized installations.
- Rated operational current of 100 A at 40 °C.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Electrical installations requiring reliable busbar connections
Standards & Compliance
- Complies with EN/IEC 61439-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Complies with environmental regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Comb Busbar 3L+N 100A is available now for immediate purchase. Ideal for industrial and residential electrical installations.
