Comb Busbar 3P+N 12 Modules | 80A Rated | Cuttable Design | Insulated by Clipsal
Comb busbar with 3P+N configuration and 12 modules—ideal for residential and commercial applications. Built for flexible installation, with 80A current rating and insulated for safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

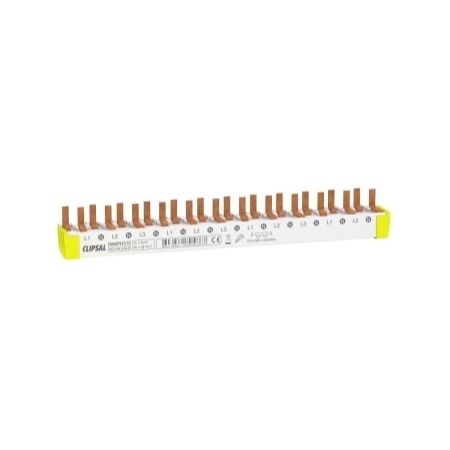

Product Name/Title: Clipsal Resi MAX, SLIM comb busbar, 3P+N 12 modules 80 A
Brand: Clipsal
SKU: RMXPH312
Alternatively Known As: Comb Busbar, Circuit Busbar, Electrical Busbar
Technical Specifications
- Poles description: 3P + N
- Number of ways: 12 ways N + L tooth connector(s) with 9 mm pitch.
- Distance between way: 18 mm.
- Total number of 18 mm modules: 12.
- Rated insulation voltage: 500 V AC conforming to IEC 61439-1.
- Rated impulse withstand voltage: 6 kV.
- Fire resistance: 960 °C (30 s) conforming to IEC 60695-2-1.
- Pollution degree: 3 conforming to IEC 60947-7-1.
- Dimensions (H x L x W): 58mm x 233mm x 216mm
- Weight: 0.156 kg
Key Features
- Cuttable design for flexible installation.
- Rated operational current of 80 A at 40 °C.
- Rated operational voltage of 230 V AC Ph/N and 400 V AC Ph/Ph.
- Insulated for safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Small offices and retail spaces
Standards & Compliance
- Complies with IEC 61439-1 and IEC 60947-7-1.
Environmental Benefits
- Free of Substances of Very High Concern above the threshold.
- Toxic heavy metal free and mercury free.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Resi MAX SLIM Comb Busbar 3P+N 12 Modules 80 A is available now for immediate purchase. Ideal for residential and commercial applications.
