Trade Discount 21%

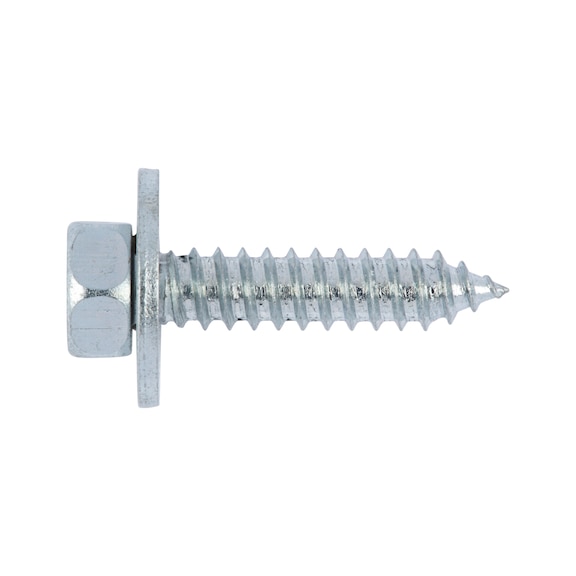

Combi Hexagon Tapping Screw with Captive Washer | Zinc Plated Steel | Pointed Tip for Easy Penetration | by Wurth
The Combi Hexagon Tapping Screw with Captive Washer is designed for secure fastening in metal and plastic assemblies. Featuring a pointed tip for easy self-tapping and a zinc-plated steel construction for corrosion resistance, this screw is ideal for industrial and construction applications. With a captive washer to distribute load and prevent damage, it ensures durability and reliability in various fastening tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Combi Hexagon Tapping Screw with Captive Washer | Zinc Plated Steel | Pointed Tip for Easy Penetration | by Wurth
Brand: Wurth
SKU: 12913513
Alternatively Known As: Hexagon self-tapping screw with washer, Combi hex screw, Captive washer screw, ISO 10510 tapping screw
Technical Specifications
- Nominal diameter (d1): 3.5 mm
- Length (l1): 13 mm
- Washer diameter (d2): 8 mm
- Washer thickness (h1): 1 mm
- ISO standard: 10510
- Material: Steel
- Surface: Zinc plated with blue passivation (A2K)
- Head type: Hexagon head
- Head height (k1): 2.6 mm
- Form: C
- External drive (s1): WS5.5
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Pointed tip for easy penetration
- Dimensions (H x L x W): 2.6mm x 13mm x 3.5mm
- Weight: 0.05 kg
Key Features
- Combi hexagon head for versatile driving options
- Captive washer included to distribute load and prevent damage
- Zinc-plated steel with blue passivation (A2K) for corrosion resistance
- Pointed tip for easy self-tapping into materials
- Full thread design for strong holding power
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper fastening and safety.
Applications
- General fastening applications requiring secure and durable screw connections
- Suitable for metal and plastic assembly where self-tapping screws are needed
- Industrial and construction use for fastening components with captive washer
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Combi Hexagon Tapping Screw with Captive Washer is available for immediate purchase, ideal for industrial, construction, and general fastening applications.
