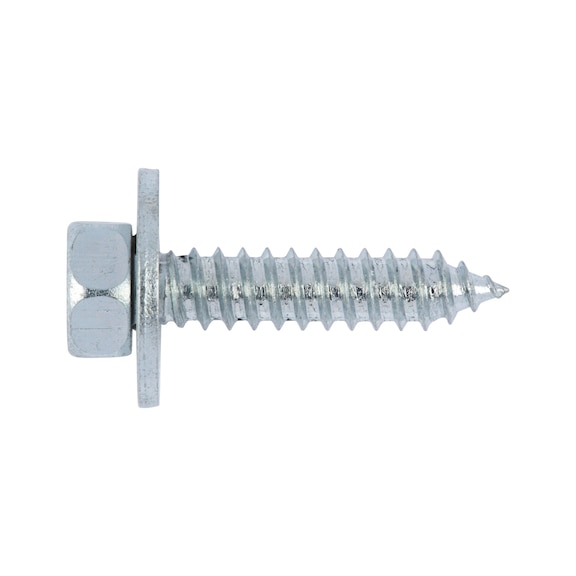

Combi Hexagon Tapping Screw with Captive Washer | Zinc-Plated Steel | Pointed Tip for Easy Penetration | by Wurth
Combi hexagon tapping screw with captive washer is designed for versatile fastening in metal and plastic assemblies. Made from zinc-plated steel for corrosion resistance, this self-tapping screw features a pointed tip for easy penetration and a full thread design for strong holding power. Ideal for industrial and construction applications, it ensures secure fastening in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Combi Hexagon Tapping Screw with Captive Washer | Zinc-Plated Steel | Pointed Tip for Easy Penetration | by Wurth
Brand: Wurth
SKU: 12914213
Alternatively Known As: Hexagon self-tapping screw with washer, Combi hex screw, ISO 10510 tapping screw
Technical Specifications
- Nominal diameter (d1): 4.2 mm
- Length (l1): 13 mm
- Washer diameter (d2): 9 mm
- Washer thickness (h1): 1 mm
- ISO standard: 10510
- Material: Steel
- Surface: Zinc plated with blue passivation (A2K)
- Head type: Hexagon head
- Head height (k1): 3.0 mm
- Form: C
- External drive (s1): WS7
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Pointed tip for easy penetration
- Dimensions (H x L x W): 13mm x 13mm x 4.2mm
- Weight: 0.02 kg
Key Features
- Combi hexagon head for versatile driving options
- Captive washer included for secure fastening
- Zinc-plated steel with blue passivation (A2K) for corrosion resistance
- Pointed tip for easy self-tapping
- Full thread design for strong holding power
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper fastening and safety.
Applications
- General fastening applications requiring self-tapping screws
- Metal and plastic assembly
- Industrial and construction use
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Combi Hexagon Tapping Screw with Captive Washer ISO10510 A2K C S1 N 42X13 25 PCS is available for immediate purchase, ideal for industrial, construction, and general fastening applications.
