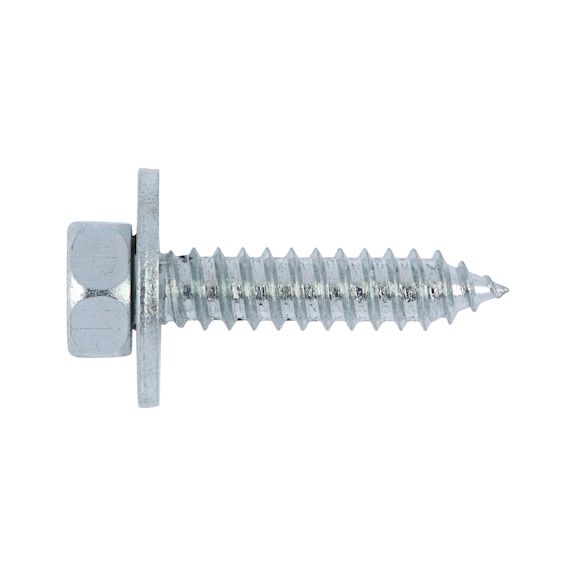

Combi Hexagon Tapping Screw with Captive Washer | Zinc-Plated Steel | Pointed Tip for Easy Penetration | by Wurth
The Combi Hexagon Tapping Screw with Captive Washer is designed for versatile fastening in metal and sheet applications. Made from zinc-plated steel for corrosion resistance, it features a pointed tip for easy self-tapping and a full thread design for a strong hold. Ideal for industrial and construction use, this screw ensures secure fastening in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Combi Hexagon Tapping Screw with Captive Washer | Zinc-Plated Steel | Pointed Tip for Easy Penetration | by Wurth
Brand: Wurth
SKU: 12914219
Alternatively Known As: Hexagon self-tapping screw with washer, Combi hex screw, ISO 10510 tapping screw
Technical Specifications
- Nominal diameter (d1): 4.2 mm
- Length (l1): 19 mm
- Washer diameter (d2): 9 mm
- Washer thickness (h1): 1 mm
- ISO standard: 10510
- Material: Steel
- Surface: Zinc plated with blue passivation (A2K)
- Head type: Hexagon head
- Head height (k1): 3.0 mm
- Form: C
- External drive (s1): WS7
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Pointed tip for easy penetration
- Dimensions (H x L x W): 3.0mm x 19mm x 4.2mm
- Weight: 0.02 kg
Key Features
- Combi hexagon head for versatile driving options
- Captive washer included for secure fastening
- Zinc-plated steel with blue passivation (A2K) for corrosion resistance
- Pointed tip for easy self-tapping
- Full thread design for strong hold
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and safety.
Applications
- General fastening applications requiring self-tapping screws
- Metal and sheet fastening
- Industrial and construction use
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Combi Hexagon Tapping Screw with Captive Washer is available for immediate purchase, ideal for industrial, construction, and general fastening applications.
