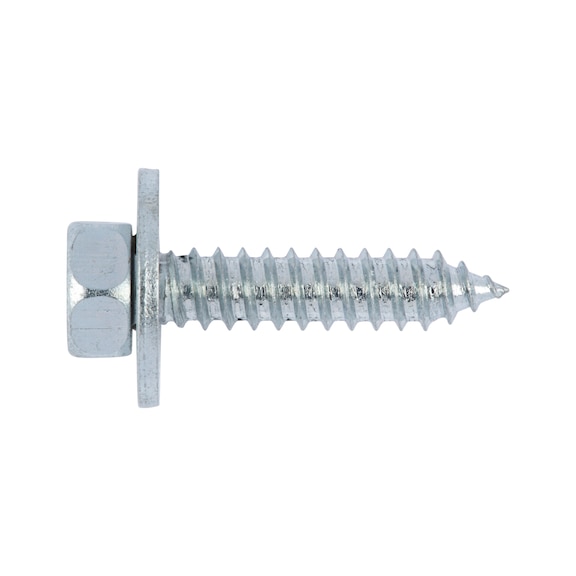

Combi Hexagon Tapping Screw with Captive Washer | Zinc-Plated Steel | Pointed Tip for Easy Penetration | by Wurth
The Combi Hexagon Tapping Screw with Captive Washer is designed for versatile fastening in metal and plastic assemblies. Featuring a pointed tip for easy self-tapping and a zinc-plated finish for corrosion resistance, this screw is perfect for industrial and construction applications. With a full thread design, it ensures strong holding power, making it an essential choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Combi Hexagon Tapping Screw with Captive Washer | Zinc-Plated Steel | Pointed Tip for Easy Penetration | by Wurth
Brand: Wurth
SKU: 12914222
Alternatively Known As: Hexagon self-tapping screw with washer, Combi hex screw, ISO10510 tapping screw

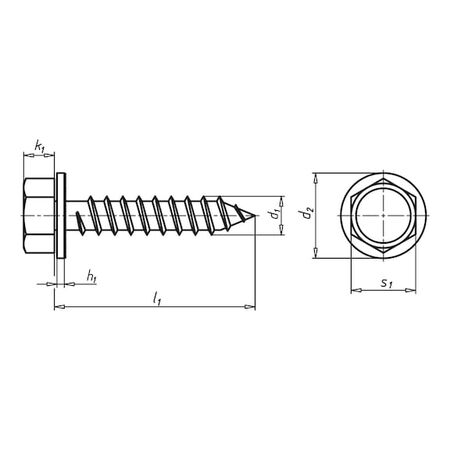

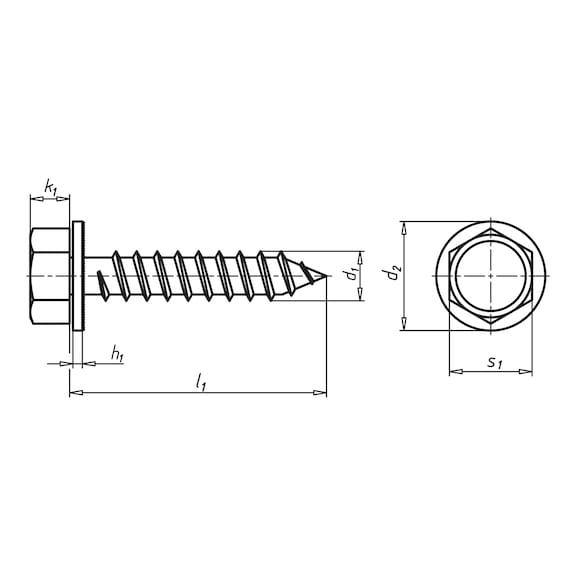

Technical Specifications
- Nominal diameter (d1): 4.2 mm
- Length (l1): 22 mm
- Washer diameter (d2): 9 mm
- Washer thickness (h1): 1 mm
- ISO standard: 10510
- Material: Steel
- Surface: Zinc plated with blue passivation (A2K)
- Head type: Hexagon head
- Head height (k1): 3.0 mm
- Form: C
- External drive (s1): WS7
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Pointed tip for easy penetration
- Dimensions (H x L x W): 3mm x 22mm x 9mm
- Weight: 0.02 kg
Key Features
- Combi hexagon head for versatile driving options
- Captive washer included for secure fastening
- Zinc-plated steel with blue passivation (A2K) for corrosion resistance
- Pointed tip for easy self-tapping into materials
- Full thread design for strong holding power
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper fastening and safety.
Applications
- General fastening applications requiring self-tapping screws
- Suitable for metal and plastic assembly
- Industrial and construction fastening tasks
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Combi Hexagon Tapping Screw with Captive Washer ISO10510 A2K C S1 N 42X22 is available for immediate purchase, ideal for industrial, construction, and general fastening applications.
