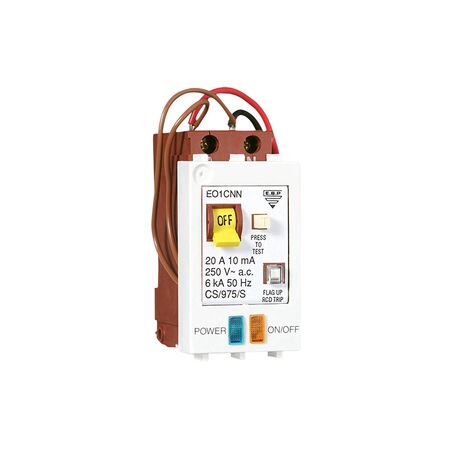

Combination RCD/MCB Module 2 Pole 20A | 10mA | Flush Mount White

BRAND: Clipsal

SKU: E01CNN20

$313.30 List price: $415.90

+ −

30 Days Return Delivery Options

Combination RCD/MCB module with 2 poles and 20A capacity—ideal for residential and commercial electrical safety. Built for overload protection, with in-built indicators and test facility to ensure reliability.

Description

Product Name/Title: Combination RCD/MCB Module 2 Pole 20A | 10mA | Flush Mount White

SKU: E01CNN20

Alternatively Known As: RCD MCB Combo Module, Residual Current Device with MCB, 2 Pole RCD MCB, Electrical Safety Module

Technical Specifications

Rated voltage: 240 VAC
Rated current: 20 A
Rated fault current: 10 mA
Number of poles: 2
Mounting method: DIN-rail (DRA)
Leakage current type: AC
Frequency: 50 Hz
Short-time delayed tripping: Yes
Operating temperature range: -10 to 55 °C
Trip time: < 40 ms
Dimensions (H x L x W): 74mm x 65mm x 45mm
Weight: 0.3 kg

Key Features

Overload protection
Blue line supply indicator and amber load supply indicator
In-built indicator to indicate whether an RCD or MCB fault has occurred
In-built test facility
Sophisticated filtering to stop nuisance tripping caused by radio frequency interference (RFI)
Standard finish for flush mount is white electric
< 40 ms trip time
Operating temperature: -10 to 55 °C

Professional Installation Requirements

Professional installation by a licensed electrician is required to ensure compliance with electrical safety standards and proper operation.

Applications

Residential electrical safety systems
Commercial electrical distribution boards
Industrial electrical protection installations

Standards & Compliance

Complies with AS/NZS 3190 – Residual current devices (current-operated earth-leakage devices)

Environmental Benefits

Prevents electrical faults and reduces risk of electrical fires, enhancing safety and reducing environmental hazards.
Sophisticated filtering reduces nuisance tripping, improving energy efficiency and system reliability.

Warranty Information

Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.

Available Now

The Combination RCD/MCB Module 2 Pole 20A 10mA Flush Mount White is available now for immediate purchase. Ideal for enhancing electrical safety in residential, commercial, and industrial electrical systems.
