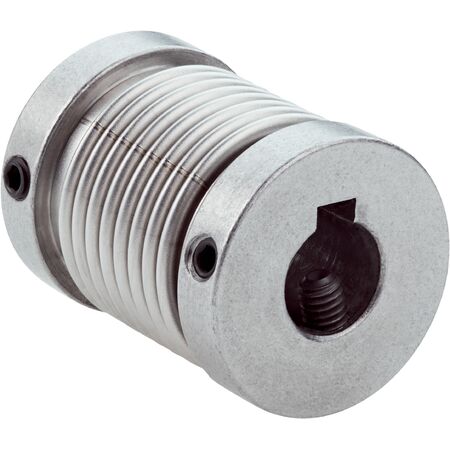

Combination Shaft Coupling KUP-0610-BJ Emergency Running Feature Max Speed 10,000 RPM SICK
The Combination Shaft Coupling KUP-0610-BJ is engineered for industrial machinery shaft adaptation and mechanical power transmission systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 10 mm
- Maximum shaft offset: radial ±0.3 mm, axial ±0.45 mm, angular ±3°
- Maximum speed: 10,000 rpm
- Operating temperature range: -30° to +120 °C
- Maximum torque: 200 Ncm
- Material: stainless steel bellows and flange
- Torsion spring stiffness: 183 Nm/rad
- Radial spring stiffness: 17.8 N/mm
- Moment of inertia: 9.1 gcm²
- Shaft insertion depth: min 6 mm, max 11 mm
- Hubs with feather keyways DIN6885 3/4 mm
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Combination coupling: bellows and claw coupling
- Emergency running property in case of bellows fracture
- Maximum shaft offset: radial ±0.3 mm, axial ±0.45 mm, angular ±3°
- Max speed: 10,000 rpm
- Temperature range: -30° to +120 °C
- Max torque: 200 Ncm
- Material: stainless steel bellows and flange
- Torsion spring stiffness: 183 Nm/rad
- Radial spring stiffness: 17.8 N/mm
- Moment of inertia: 9.1 gcm²
- Shaft insertion depth: min 6 mm, max 11 mm
- Hubs with feather keyways DIN6885 3/4 mm
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper shaft alignment and coupling performance.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission systems
- Emergency running applications requiring shaft coupling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Emergency running feature prevents machinery downtime and reduces resource waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KUP-0610-BJ Combination Shaft Coupling is available for immediate purchase, ideal for industrial shaft adaptation and emergency running applications.
