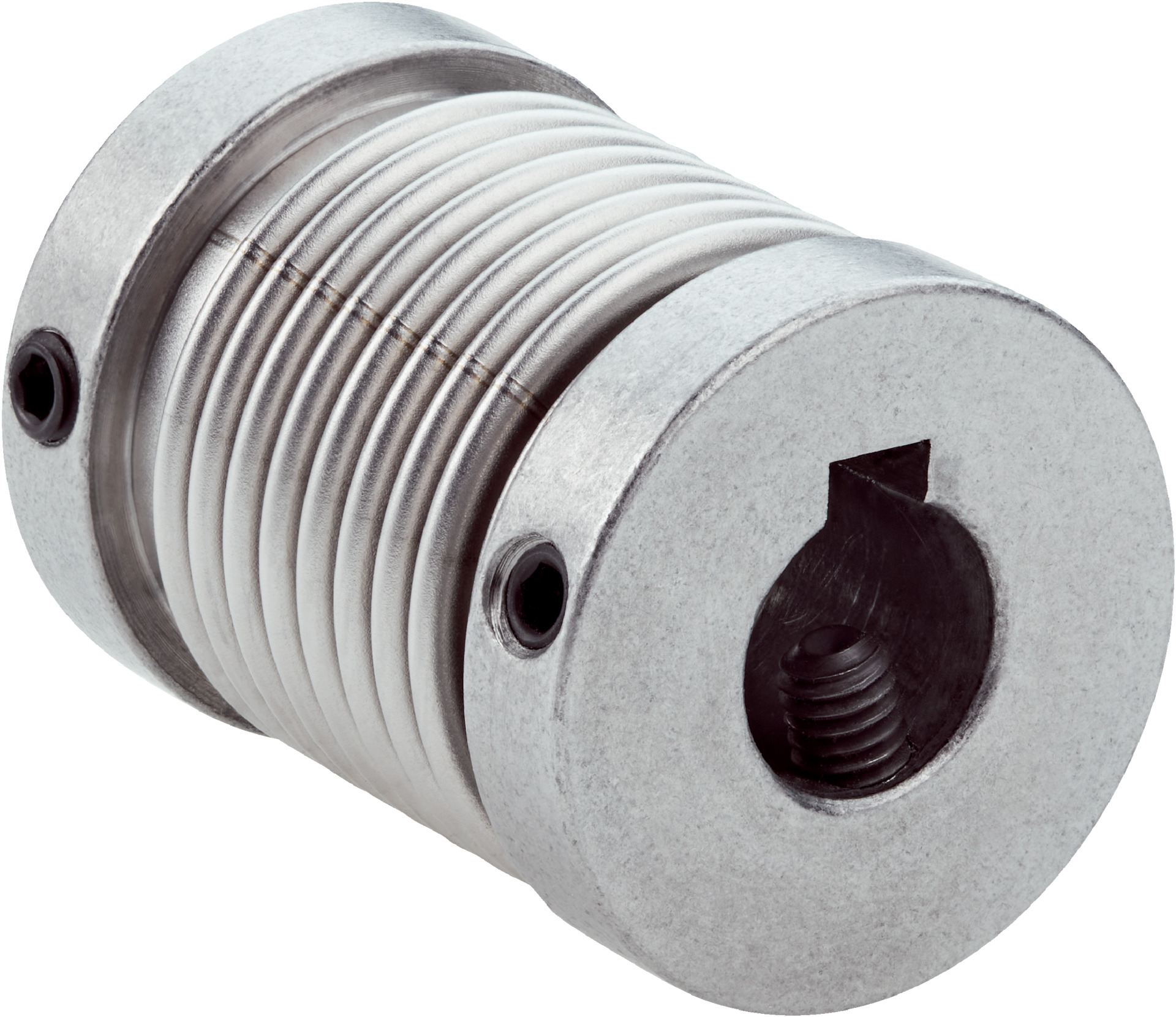

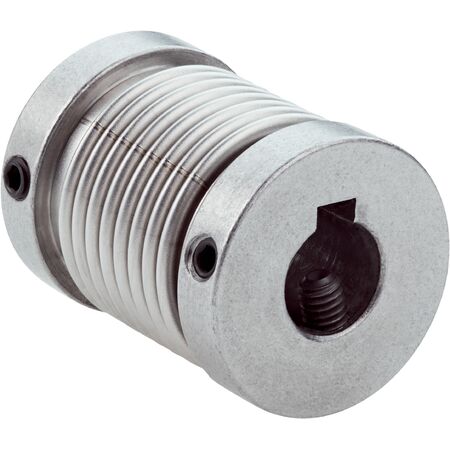

Combination Shaft Coupling KUP-0610-BJ | Emergency Running Feature | Max Speed 10,000 RPM | Stainless Steel | by SICK
The Combination Shaft Coupling KUP-0610-BJ is engineered for industrial machinery shaft adaptation and mechanical power transmission systems. With a maximum speed of 10,000 RPM and an emergency running feature in case of bellows fracture, this coupling ensures reliable performance under demanding conditions. Built from durable stainless steel, it operates effectively within a temperature range of -30° to +120 °C, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 10 mm
- Maximum shaft offset: radial ±0.3 mm, axial ±0.45 mm, angular ±3°
- Maximum speed: 10,000 rpm
- Operating temperature range: -30° to +120 °C
- Maximum torque: 200 Ncm
- Material: stainless steel bellows and flange
- Torsion spring stiffness: 183 Nm/rad
- Radial spring stiffness: 17.8 N/mm
- Moment of inertia: 9.1 gcm²
- Shaft insertion depth: min 6 mm, max 11 mm
- Hubs with feather keyways DIN6885 3/4 mm
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Combination coupling: bellows and claw coupling
- Emergency running property in case of bellows fracture
- Maximum shaft offset: radial ±0.3 mm, axial ±0.45 mm, angular ±3°
- Max speed: 10,000 rpm
- Temperature range: -30° to +120 °C
- Max torque: 200 Ncm
- Material: stainless steel bellows and flange
- Torsion spring stiffness: 183 Nm/rad
- Radial spring stiffness: 17.8 N/mm
- Moment of inertia: 9.1 gcm²
- Shaft insertion depth: min 6 mm, max 11 mm
- Hubs with feather keyways DIN6885 3/4 mm
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper shaft alignment and coupling performance.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission systems
- Emergency running applications requiring shaft coupling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Emergency running feature prevents machinery downtime and reduces resource waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KUP-0610-BJ Combination Shaft Coupling is available for immediate purchase, ideal for industrial shaft adaptation and emergency running applications.
