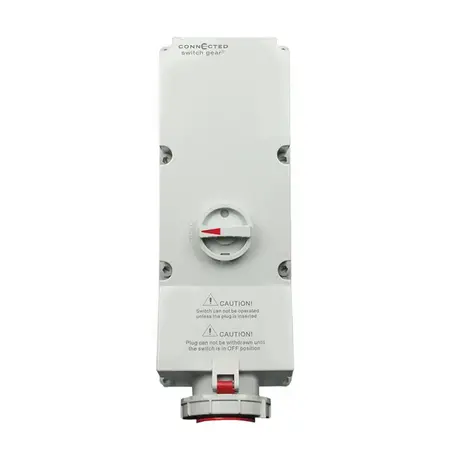

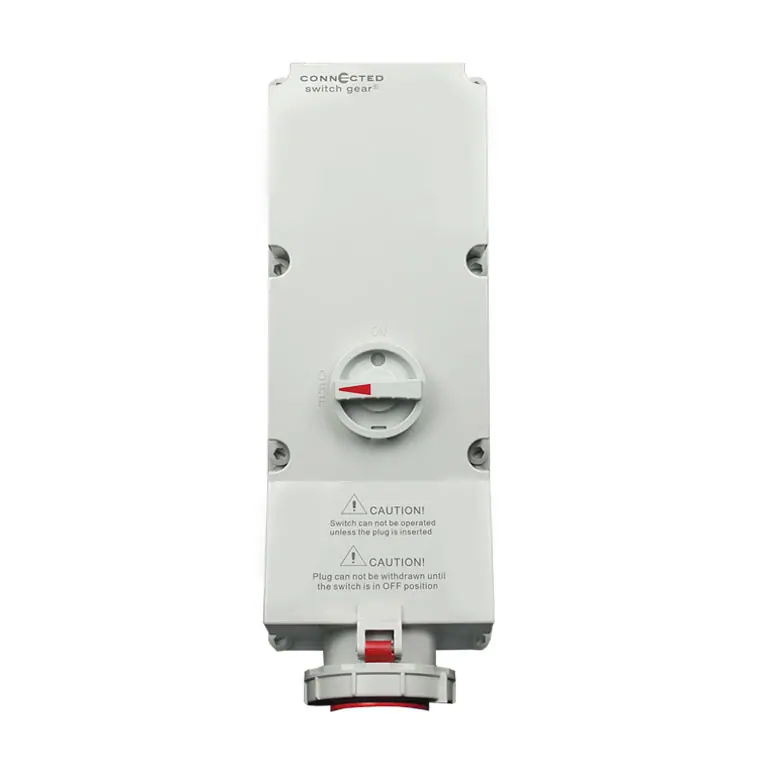

Combination Switched Socket Outlet Interlock | IP67 Rated | 5 Pin 125A | 400V AC | by Connected Switchgear
The Combination Switched Socket Outlet Interlock is designed for heavy industrial and maritime applications, featuring an IP67 rating for dust and water protection. With a robust 5 pin configuration and a 125A capacity, this socket outlet ensures reliable electrical connections in harsh environments, built from impact and chemical resistant materials for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP67 Industrial Switched Socket Outlet, 5 Pin 125A Socket, CEE Form Combination Socket
Technical Specifications
- Current Rating: 125A
- Voltage Rating: 400V AC
- Pin Configuration: 5 Pin
- Ingress Protection: IP67
- Material: Impact and chemical resistant
- Compliance: Colour coded to international CEE form standards
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 3.5 kg
Key Features
- IP67 rated for dust and water ingress protection
- 5 pin 400V AC 125A capacity
- Combination switched socket outlet with interlock
- Impact and chemical resistant material
- Colour coded to meet international CEE form standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper interlock functionality.
Applications
- Heavy industrial environments
- Maritime applications
- Outdoor and harsh environment electrical connections
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- IP67 rating ensures long service life even in harsh environments, reducing environmental impact
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Connected Switchgear Combination Switched Socket Outlet Interlock IP67 5Pin 400V AC 125A European Series is available for immediate purchase, ideal for heavy industrial and maritime electrical applications.
