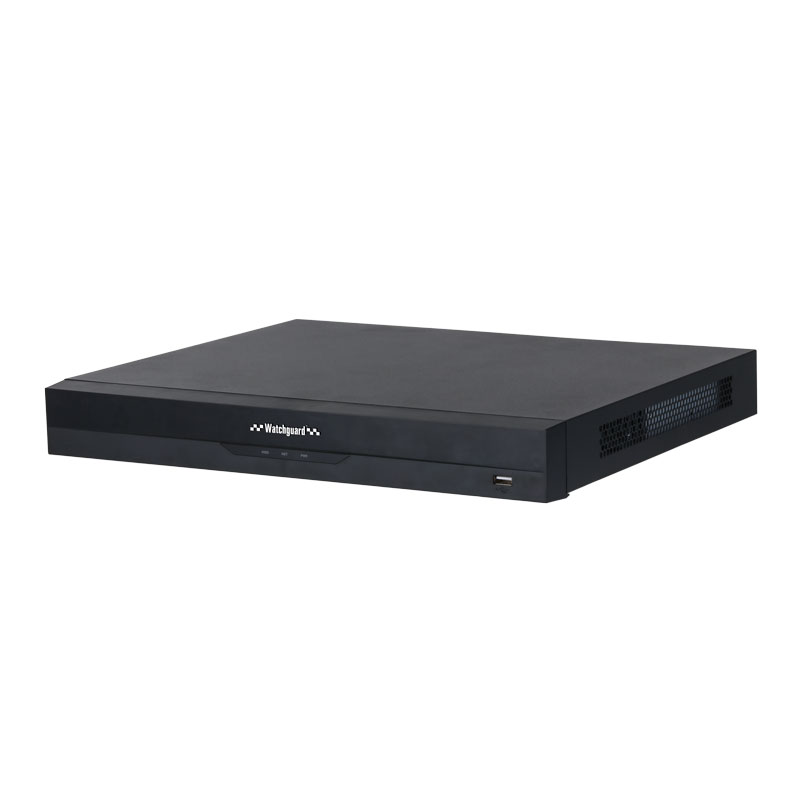

Compact AI Series 16CH PoE NVR | 16.0 Megapixel Resolution | AI Face Recognition & Detection | by Cornick
The Compact AI Series 16CH PoE NVR is designed for advanced CCTV surveillance, supporting up to 16 channels with a stunning 16.0 megapixel recording resolution. Ideal for commercial and residential security, it features AI face recognition, human/vehicle detection, and a built-in 16 port PoE switch for seamless camera connectivity. With dual SATA bays for extensive storage, this NVR is perfect for upgrading existing systems to AI-enabled surveillance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact AI Series 16CH PoE NVR | 16.0 Megapixel Resolution | AI Face Recognition & Detection | by Cornick
Brand: Cornick
SKU: NVR16COM-I
Alternatively Known As: 16 Channel AI PoE NVR, AI Network Video Recorder, PoE NVR with HDD Bays, AI Surveillance NVR
Technical Specifications
- Recording Resolution: Up to 16.0 megapixels (4920 x 3264)
- Incoming Bandwidth: Up to 256 Mbps
- Decoding Capability: 12 channels at 1080P/25fps (AI enabled), 16 channels at 1080P/25fps (AI disabled)
- AI Features: Face recognition (1 channel), human/vehicle detection via tripwire/intrusion (2 channels), motion detection (4 channels)
- ANPR Support: Up to 4 channels
- Storage: 2 SATA bays, each supporting up to 16TB HDD
- Video Output: HDMI and VGA simultaneous output
- Connectivity: Built-in 16 port PoE switch
- Backup: External USB device or local network
- Dimensions (H x L x W): 60mm x 250mm x 300mm
- Weight: 2.5 kg
Key Features
- Supports up to 16 channels with 16.0 megapixel recording resolution
- Built-in 16 port Power over Ethernet (PoE) switch for easy camera connectivity
- AI face recognition and database comparison on 1 channel
- AI human/vehicle detection via tripwire/intrusion rules on 2 channels
- AI human/vehicle detection via motion detection on 4 channels
- Supports Automatic Number Plate Recognition (ANPR) on up to 4 channels
- 2 SATA bays supporting up to 16TB HDD capacity per bay
- Simultaneous HDMI and VGA video output
- Backup footage via external USB device or local network
Professional Installation Requirements
- Professional installation by a qualified security system technician or licensed electrician is recommended to ensure proper network configuration and power supply setup.
Applications
- CCTV surveillance for commercial properties
- Security monitoring for residential complexes
- Upgrading existing NVR systems to AI-enabled surveillance
- Vehicle and pedestrian monitoring with AI detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient PoE technology reduces power consumption by combining data and power transmission over a single cable.
- Supports remote backup reducing the need for physical media and waste.
Warranty Information
3 years warranty covering manufacturing defects and hardware failures.
Available Now
The Cornick Compact AI Series 16CH PoE NVR with 2 x HDD Bays is available for immediate purchase, ideal for upgrading or installing advanced AI-enabled CCTV surveillance systems.
