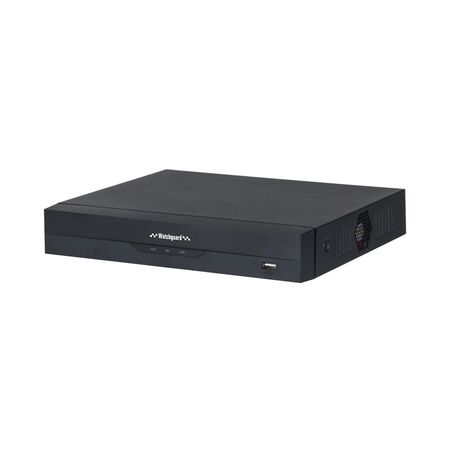

Compact AI Series 8CH PoE NVR | 16MP Recording | AI Features | 8 Port PoE Switch | by Cornick
The Compact AI Series 8CH PoE NVR offers stunning 16MP recording resolution and advanced AI features like face recognition and human/vehicle detection. Perfect for residential and commercial CCTV surveillance, this NVR supports up to 256Mbps bandwidth and includes a built-in 8 port PoE switch for seamless connectivity. Ideal for enhancing security in various environments, it ensures reliable performance and easy setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Max Recording Resolution: 16.0 Megapixels (4920 x 3264)
- Incoming Bandwidth: 256Mbps
- Decoding Capability: 8CH@4MP/25fps (AI disabled), 8CH@1080P/25fps (AI enabled)
- AI Features: Face recognition (1 channel), Human/Vehicle detection (2 channels tripwire/intrusion, 8 channels motion detection)
- ANPR Support: Up to 4 channels
- Storage: 1 x SATA HDD bay, supports up to 16TB

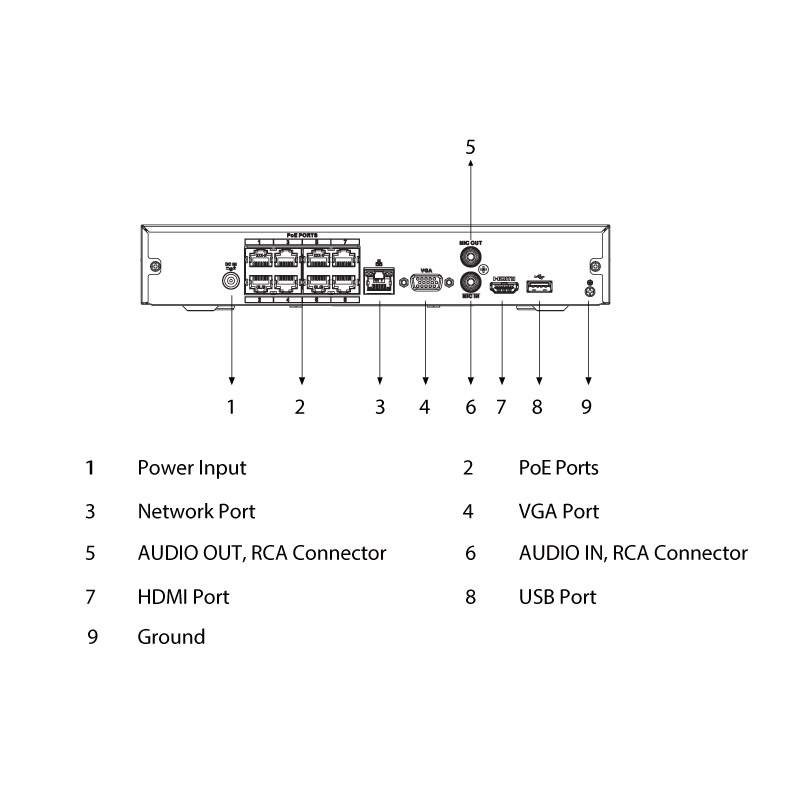

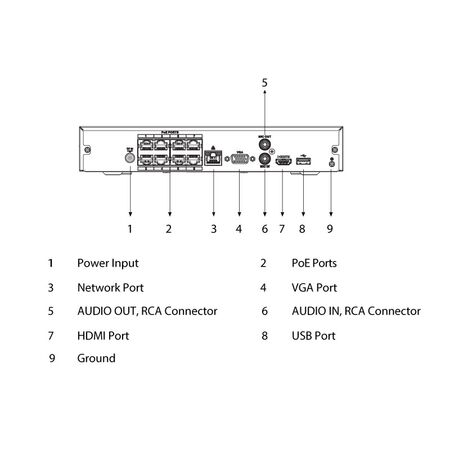

- Network: Built-in 8 port PoE switch
- Video Output: HDMI and VGA simultaneous output
- Backup: External USB device or local network
- Dimensions (H x L x W): 45mm x 200mm x 250mm
- Weight: 1.5 kg
Key Features
- Records up to 16.0 megapixel resolution (4920 x 3264)
- Supports up to 256Mbps total incoming bandwidth
- Decodes 8 channels at 4MP/25fps with AI disabled, 8 channels at 1080P/25fps with AI enabled
- AI face recognition and database comparison on 1 channel
- AI human/vehicle detection via tripwire/intrusion on 2 channels
- AI human/vehicle detection via motion detection on 8 channels
- Supports ANPR (automatic number plate recognition) on up to 4 channels
- 1 SATA HDD bay supporting up to 16TB capacity
- Built-in 8 port Power over Ethernet (PoE) switch
- Simultaneous HDMI and VGA video output
- Backup footage via external USB device or local network
Professional Installation Requirements
- Professional installation by a qualified CCTV technician or electrician is recommended to ensure proper setup, network configuration, and compliance with electrical safety standards.
Applications
- CCTV surveillance for residential properties
- Commercial security systems
- Industrial and warehouse monitoring
- Retail store video surveillance
- Parking lot and outdoor area monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption during operation
- Supports remote monitoring reducing the need for physical site visits
- Enables proactive security reducing waste from false alarms
Warranty Information
Comes with a 2-year manufacturer warranty covering defects and hardware failures.
Available Now
The Cornick Watchguard Compact AI Series 8CH PoE NVR with 1 x HDD Bay is available for immediate purchase, ideal for upgrading or installing advanced AI-enabled CCTV surveillance systems.
