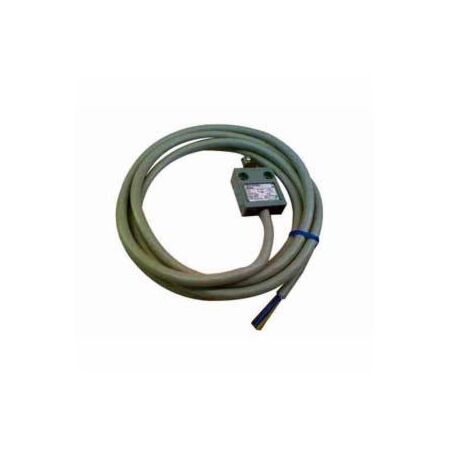

Compact Limit Switch | Booted Top Push Actuator | 3 Meter Cable Lead | Metal Housing | by Allen-Bradley
The Compact Limit Switch from Allen-Bradley features a booted top push actuator and a 3-meter side cable lead, making it ideal for industrial automation and machinery control. With a robust metal housing and a spring return mechanism, this switch ensures durability and reliability in various applications, including conveyor systems and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Actuation: Push actuation with booted top cross roller
- Contacts: 1 normally open (NO), 1 normally closed (NC)
- Cable Lead: 3 meter side cable
- Operating Temperature: -10°C to 70°C
- Return Mechanism: Spring return
- Material: Metal housing
- Circuit: 1 circuit
- Dimensions (H x L x W): 100mm x 75mm x 50mm
- Weight: 1.8 kg
Key Features
- Booted top push cross roller actuator
- 1 normally open contact and 1 normally closed contact
- Spring return mechanism
- Full switch including head and body
- 3 meter cable lead for side mounting
- Metal construction for durability
- Operating temperature range from -10°C to 70°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and safety compliance.
Applications
- Industrial automation and control systems
- Machinery position sensing
- Conveyor systems
- Manufacturing process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Long service life minimizes environmental impact from manufacturing and disposal
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802BCSAD1BSXC3 Compact Limit Switch is available now for immediate purchase. Ideal for industrial automation and machinery control applications.
