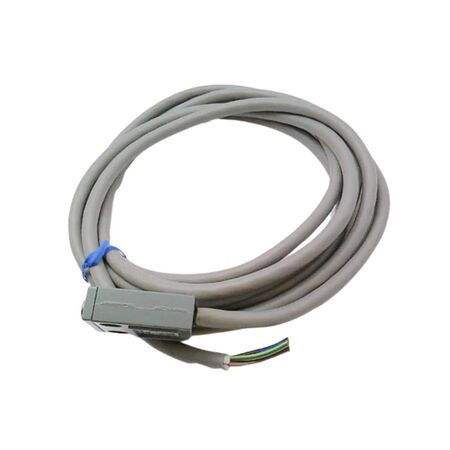

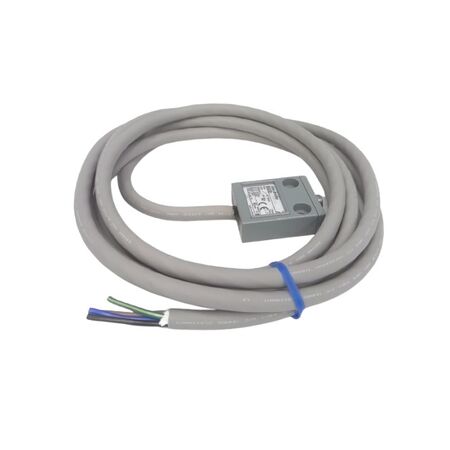

Compact Limit Switch | Top Push Rod Actuation | 1 NO & 1 NC Contact | Metal Construction | by Allen-Bradley
The Compact Limit Switch from Allen-Bradley features top push rod actuation and a robust metal construction, making it ideal for industrial automation and machinery control applications. With a 1 circuit design that includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact, this switch ensures reliable operation in various environments. Its 3-meter cable lead allows for flexible installation, perfect for conveyor systems and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: 802BCSABXSXC3
- Type: Compact limit switch
- Actuation: Top push rod
- Circuit: 1 circuit with 1 NO and 1 NC contact
- Cable Lead: 3 meters, side entry
- Contact Type: Standard contacts
- Return Mechanism: Spring return
- Material: Metal
- Operating Temperature Range: -10°C to 70°C
- Weight: 2.65 lbs (approx. 1.2 kg)
- Dimensions (H x L x W): 80mm x 100mm x 50mm
- Weight: 1.2 kg
Key Features
- Compact design with top push rod actuation
- 1 circuit with 1 Normally Open (NO) and 1 Normally Closed (NC) contact
- Metal construction for durability
- Spring return mechanism
- 3 meter cable lead for flexible installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical control systems to ensure safety and compliance.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor systems
- Manufacturing process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal construction reduces waste by extending product lifespan
- Reliable operation minimizes downtime and resource consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802BCSABXSXC3 Compact Limit Switch is available now for immediate purchase. Ideal for industrial automation and machinery control applications.
