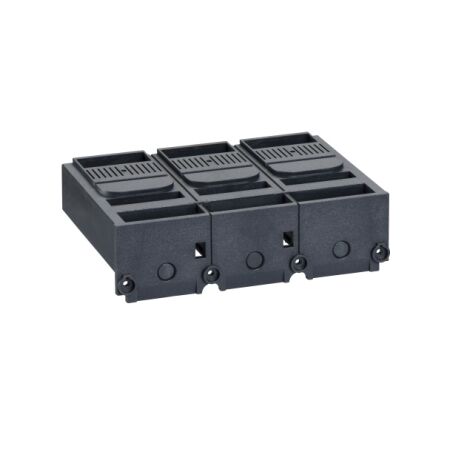

Compact NSX Terminal Shield | IP40 | 3 Poles | 45mm Pitch by Clipsal

BRAND: Clipsal
SKU: LV432591
$127.00 List price: $190.60
+
Compact NSX terminal shield with IP40 protection and 3 poles—ideal for electrical installations. Built for safety, with 45mm pitch and compliance with IEC standards.

Product Name/Title: Compact NSX <630, Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

Brand: Clipsal

SKU: LV432591

Alternatively Known As: Compact NSX Terminal Shield, Short Terminal Shield, Insulation Accessory for NSX

Technical Specifications
  • Compatibility: ComPacT NSX400/630 and EasyPact CVS400/630.
  • Connection pitch: 45 mm.
  • Poles description: 3P.
  • Dimensions (H x L x W): 51mm x 119mm x 220mm
  • Weight: 0.1 kg
Key Features
  • Protects against direct contact with power circuits.
  • Allows compliance with IEC 60947-2 standard clearance distances.
  • IP40 degree of protection.
  • IK07 mechanical impact protection.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety.
Applications
  • Electrical installations requiring insulation accessories for circuit protection.
Standards & Compliance
  • Complies with IEC 60529 for IP40 protection.
Environmental Benefits
  • Pro-active China RoHS declaration.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Compact NSX Short Terminal Shield is available now for immediate purchase. Ideal for electrical installations requiring insulation accessories.
