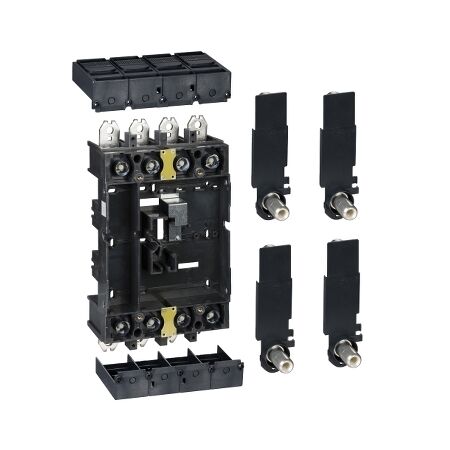

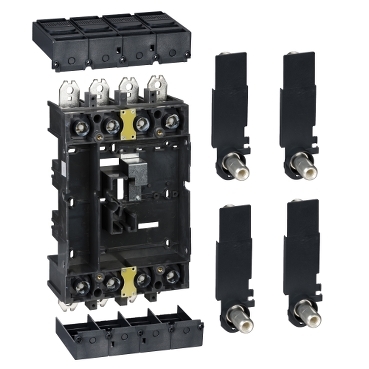

Compact Plug In Base Kit 4P | 4-Pole Design | Quick Installation | Up to 250A | @Pack of 1 | by Clipsal
The Compact Plug In Base Kit 4P is designed for seamless integration with NSX100, NSX160, and NSX250 circuit breakers, making it ideal for electrical distribution panels and switchboards. With its robust construction and plug-in connection type, this kit enables quick installation and reliable performance, ensuring minimal downtime and efficient upgrades for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact Plug In Base Kit 4P | 4-Pole Design | Quick Installation | Up to 250A | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429290
Alternatively Known As: NSX Plug In Base Kit, 4 Pole Plug In Base, LV429290, Schneider Plug In Base Kit, Circuit Breaker Plug In Base
Technical Specifications
- Number of Poles: 4
- Compatible Devices: NSX100, NSX160, NSX250 circuit breakers
- Mounting: Plug-in base for quick installation
- Material: High-grade insulating plastic and metal contacts
- Rated Current: Up to 250A (as per compatible circuit breaker)
- Voltage Rating: 690V AC maximum
- Connection Type: Plug-in
- Dimensions (H x L x W): 80mm x 180mm x 120mm
- Weight: 0.8 kg
Key Features
- 4-pole plug-in base kit for easy installation and replacement of circuit breakers
- Compatible with NSX100, NSX160, and NSX250 circuit breakers
- Enables quick connection and disconnection without rewiring
- Robust construction for reliable electrical performance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Electrical distribution panels
- Switchboards in commercial and industrial buildings
- Retrofitting and upgrading circuit breaker installations
- Suitable for use with NSX100 to NSX250 circuit breakers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Facilitates efficient upgrades and maintenance, reducing electrical waste
- Supports safe and reliable electrical connections, minimizing downtime
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Compact Plug In Base Kit 4P SCHLV429290 is available for immediate purchase. Ideal for commercial and industrial switchboard applications requiring fast and reliable circuit breaker installation.
