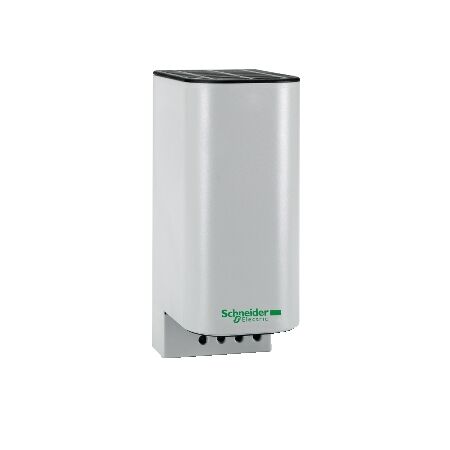

Compact Resistance Heater 100W | 120-240V | IP20 Rated | Clipsal
Compact resistance heater with 100W power and 120-240V input—ideal for industrial and commercial heating applications. Built for easy DIN rail installation, with IP20 rating for indoor use.
Sign in
Please login to continue to your account.
Product Name/Title: ClimaSys, Compact resistance heater, heating resistance 100W,110-250V insulate
Brand: Clipsal
SKU: NSYCR100WU2C
Alternatively Known As: Resistance Heater, Industrial Heater, Compact Heater
- Power: 100W
- Input Voltage: 120-240V AC 50/60Hz
- Material: Extruded aluminium body with plastic cover
- Electrical Insulation Class: Class II
- IP Rating: IP20
- Operating Position: Vertical
- Electrical Connection: 4 screw terminals 2.5 mm²
- Dimensions (H x L x W): 150mm x 90mm x 60mm
- Weight: 0.356 kg
- Compact design for easy installation on DIN rail.
- IP20 rated for indoor use.
- Wide operating temperature range from -40 to 70 °C.
- Electrical protection is needed; heaters must be installed with a thermal controller in an air-sealed enclosure.
- Industrial: Heating applications in various environments
- Commercial: Suitable for workshops and maintenance areas
- Product certifications: ULVDE
- Complies with China RoHS regulations.
18 months warranty against manufacturing defects.
The ClimaSys Compact Resistance Heater 100W is available now for immediate purchase. Ideal for industrial and commercial heating applications.
