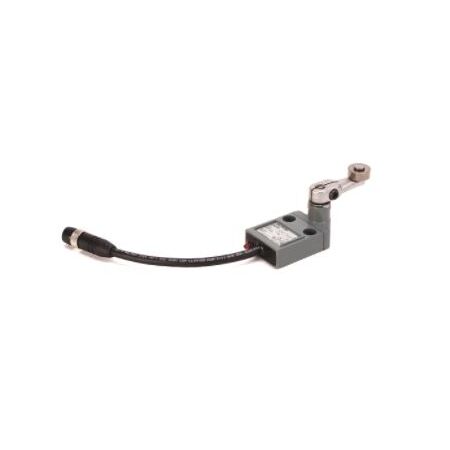

Compact Rotary Arm Switch | Precision Design | Side Mount Configuration | LED Indicator | by Allen-Bradley
The Compact Rotary Arm Switch is designed for precision control in industrial automation systems, featuring a side mount configuration and low voltage operation. With a torque of 0.216 N-m and an LED indicator for status display, this switch is perfect for machinery requiring reliable and efficient switching solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Torque to operate: 0.216 N-m (2 lb in)
- Travel to operate: 25 degrees
- Maximum travel: 70 degrees
- Travel to reset: 3 degrees
- Connection: 4-pin DC micro quick disconnect
- Dimensions (H x L x W): 40mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Compact and precision rotary arm design
- Side mount configuration
- Low voltage and current operation
- LED indicator for status display
- 4-pin DC micro quick disconnect (QD) connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Precision machinery requiring low voltage/current switching
- Equipment with side mount rotary arm switch needs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption due to low voltage/current design
- Durable construction reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802BCSDAXSLD4 Compact Rotary Arm Switch is available for immediate purchase, ideal for industrial and precision control applications.
