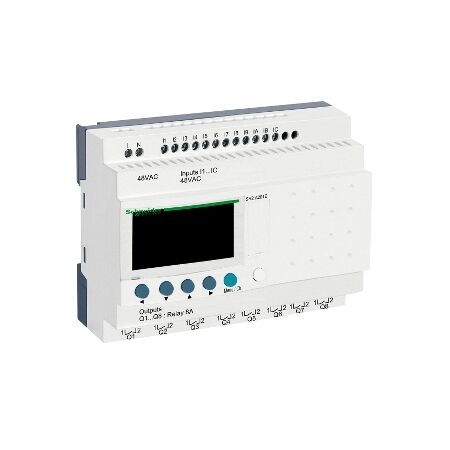

Compact Smart Relay 20 I/O | 48V AC | LCD Display | DIN Rail by Clipsal
Compact smart relay with 20 I/O and 48V AC supply—ideal for industrial automation and control systems. Built for easy programming with an integrated LCD display and compact DIN rail design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Zelio Logic, Compact smart relay, 20 I/O, 48 V AC, no clock, display
Brand: Clipsal
SKU: SR2A201E
Alternatively Known As: Zelio Logic Relay, Compact Relay, Programmable Controller
Technical Specifications
- Supply Voltage: 48V AC
- Power Consumption: 5.7 VA
- Electrical Durability: 500,000 cycles at various ratings
- Discrete Inputs: 12, Discrete Outputs: 8 relay
- Response Time: 48 ms for discrete input
- Isolation Voltage: 1780 V
- Rated Impulse Withstand Voltage: 4 kV
- Dimensions (H x L x W): 70mm x 120mm x 100mm
- Weight: 0.38 kg
Key Features
- 20 inputs/outputs with screw-clamp terminals
- Integrated LCD display for easy programming and diagnostics
- Compact design for DIN rail installation
- Simple ladder programming suitable for non-specialists
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation and control systems
- Building management systems
- Process control applications
Standards & Compliance
- Complies with IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard
- PVC free
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Zelio Logic Compact Smart Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
