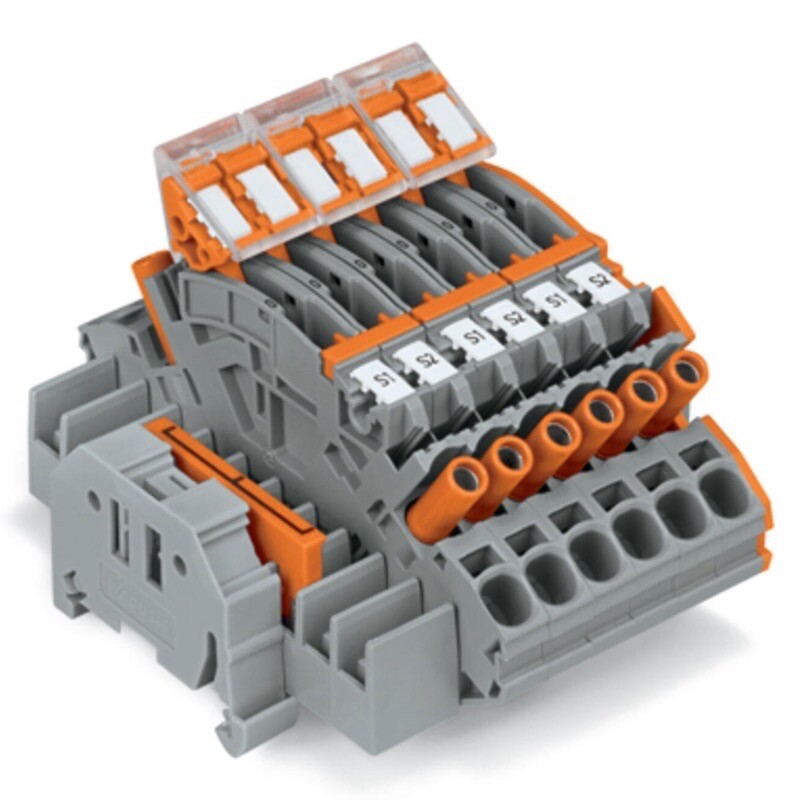

Compact Terminal Block 3 Phase Wago
Wago compact terminal block for 3 phase distribution. Ideal for switchboard and control panel connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: WAGO 2007-8876 Compact Terminal Block, Three-Phase CT Terminal Block, Current Transformer Test Terminal Block
Technical Specifications
- Product Series: TOPJOB S 2007 Series
- Function: Three-phase current transformer circuit terminal block
- Nominal Cross-Section: 6 mm²
- Conductor Range: 0.5–10 mm², depending on conductor type
- Connection Technology: Push-in CAGE CLAMP
- Actuation: Operating tool
- Conductor Material: Copper
- Rated Voltage: 500 V
- Rated Impulse Withstand Voltage: 6 kV
- Overvoltage Category: III
- Pollution Degree: 3
- Strip Length: 13–15 mm
- Mounting Type: DIN-35 rail
- Wiring Direction: Front-entry
- Insulation Material: Polyamide 66
- Flammability Rating: UL 94 V-0
- Operating Temperature: -60°C to +105°C
- Colour: Multicoloured
- Supplied Components: Six disconnect/test terminal blocks, circuit jumpers, locking covers, marking accessories and end stops
- Country of Origin: Germany
- Dimensions (H x L x W): 99.6mm x 65.3mm x 85mm
- Weight: 0.205 kg
Key Features
- Purpose-built for three-phase current transformer circuits
- Compact pre-assembled terminal block arrangement for control panels and switchboards
- Push-in CAGE CLAMP connection technology for fast, vibration-resistant conductor termination
- Accepts solid and fine-stranded copper conductors, including ferrule-terminated conductors
- Integrated disconnect and test points for 4 mm test plugs
- Multicoloured terminal identification supports phase and circuit recognition
- DIN-35 rail mounting for control cabinet installation
- Touch-proof test sockets and locking covers support safer testing and isolation
- Railway Ready approval listed by the manufacturer
Professional Installation Requirements
- Installation and commissioning in a switchboard or control panel should be performed by a licensed electrician in accordance with the manufacturer's instructions, applicable electrical regulations and AS/NZS 3000. Current transformer circuits must be correctly isolated and short-circuited where required before disconnection or testing.
Applications
- Three-phase current transformer circuits
- Switchboard current measurement and energy-monitoring systems
- Control panels and industrial distribution cabinets
- Power monitoring and metering installations
- Industrial automation and electrical control systems
Standards & Compliance
- AS 60947.7.1:2004 for terminal blocks for copper conductors
- AS/NZS 3000:2018 for installation within Australian electrical installations
Environmental Benefits
- RoHS compliant with a declared exemption for specified material content
- Polyamide insulation and metal conductive components can be separated for appropriate end-of-life recycling
- Maintenance-free spring connection technology can support long service life and reduce replacement waste
- Compact construction helps reduce control-panel material and enclosure space requirements
Warranty Information
12-month manufacturer warranty from delivery for defects attributable to WAGO, subject to applicable WAGO terms and conditions and exclusions for incorrect installation, misuse or use outside the specified operating conditions.
Available Now
Available through authorised WAGO distributors in Australia.
