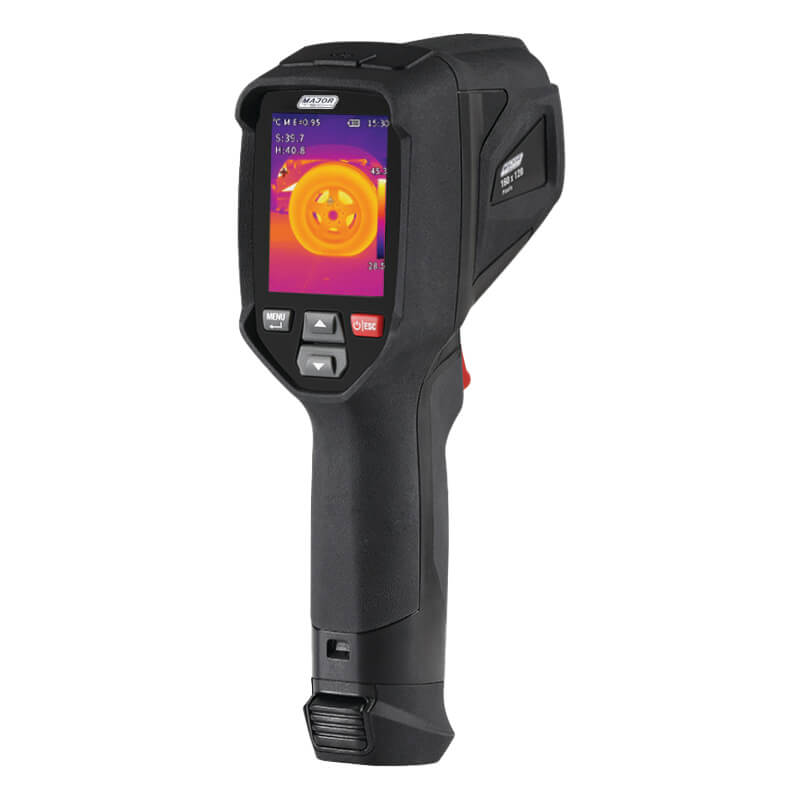

Compact Thermal Imager | 160 x 120 Resolution | -20°C to 380°C Range | Focus-Free Design by Majortech
Compact thermal imager with 160 x 120 resolution and a temperature range of -20°C to 380°C—ideal for maintenance electricians and industrial diagnostics. Built for quick hot spot detection with focus-free design and Bluetooth connectivity for easy data transfer.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact Thermal Imager | 160 x 120 Resolution | -20°C to 380°C Range | Focus-Free Design by Majortech
Brand: Majortech
SKU: MTi11
Alternatively Known As: Thermal Camera, Infrared Imager, Thermal Imaging Camera, Electrical Thermal Imager, Hot Spot Detector
Technical Specifications
- Sensor Resolution: 160 x 120 pixels
- Image Frequency: 50Hz
- Field of View: 16.5° x 16.5° at 0.5m
- Thermal Sensitivity/NETD: < 0.1°C @ +30°C (100mK)
- Focus Mode: Focus Free
- Focal Length: 7.5mm
- Spectral Range: 8-14 µm
- Display: 2.4 inch LCD, 240 x 320 pixels
- Image Modes: IR Image, Visual Image, Image Fusion
- Colour Palettes: Iron, Rainbow, Grey, Grey Inverted
- Temperature Range: -20°C to 380°C
- Temperature Accuracy: ± (2°C or ± 2%)
- Spot Measurement: Centre Spot
- Automatic Hot/Cold Detection: Auto hot or cold markers
- Emissivity Correction: Variable 0.01 to 1.0
- Measurement Corrections: Emissivity, Reflected Temperature
- Image Format: Bitmap (.bmp) with 6400 points
- Interfaces: Bluetooth BLE4.0, Type-C USB
- Enclosure: Over Moulded casing
- Input System: DC 5V
- Power Source: 3.7V 1300mAh Lithium-ion battery, >6 hours operating time
- Charging System: DC 5V 1A USB Charger
- Weight: 260g
- Dimensions: 175 x 58 x 70 mm
- Safety Specs: EN61010-1
- Dimensions (H x L x W): 175mm x 70mm x 58mm
- Weight: 0.26 kg
Key Features
- Focus-free design for quick and efficient hot spot detection
- Large 2.4 inch LCD screen with 240 x 320 resolution
- Adjustable emissivity from 0.01 to 1.0 for accurate temperature measurement
- Temperature range from -20°C to 380°C
- Centre spot temperature measurement and automatic hot/cold alarms
- Bluetooth BLE4.0 connectivity and Type-C USB port for data transfer
- Lightweight at 260g with over 6 hours operating time on lithium-ion battery
Professional Installation Requirements
- No professional installation required. Device is handheld and ready to use out of the box. Training recommended for optimal use.
Applications
- Maintenance electricians for detecting hot connections in distribution boards
- Field inspections requiring thermal imaging for hot spot analysis
- Industrial and specialist electrical diagnostics
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent electrical failures and fires by early detection of hot spots
- Reduces downtime and waste by enabling targeted maintenance
- Energy efficient operation with rechargeable lithium-ion battery
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech warranty policy for details.
Available Now
The Majortech Compact Thermal Imager MTi11 is available now for immediate purchase. Ideal for electrical maintenance and industrial inspection applications.
