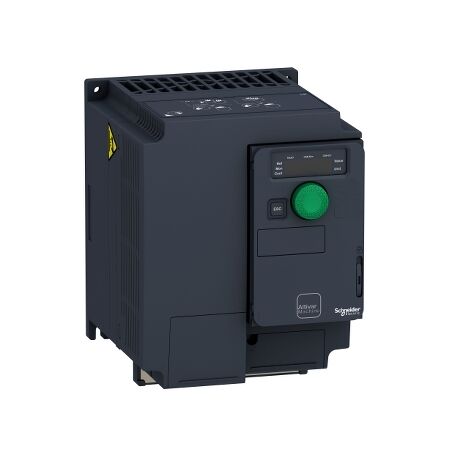

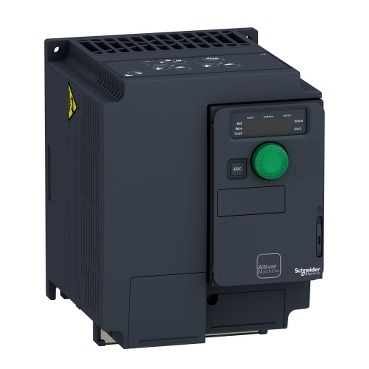

Compact VSD ATV320 2.2KW 400V 3PH | Integrated EMC Filter | Safe Torque Off | by Clipsal
The Compact VSD ATV320 2.2KW 400V 3PH is designed for efficient motor control in industrial automation applications. With a robust power rating of 2.2kW and advanced motor control features, it ensures optimal performance for pumps, fans, and conveyors. Its compact design allows for easy panel integration, while the integrated EMC filter and Safe Torque Off enhance safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact VSD ATV320 2.2KW 400V 3PH | Integrated EMC Filter | Safe Torque Off | by Clipsal
Brand: Clipsal
SKU: SCHATV320U22N4C
Alternatively Known As: ATV320 Variable Speed Drive, Schneider ATV320U22N4C, 2.2kW VSD, 3 Phase VSD, Compact VSD, Motor Drive, Frequency Inverter
Technical Specifications
- Power Rating: 2.2kW (3HP)
- Input Voltage: 380-500V AC, 3-phase
- Output Voltage: 0-500V AC, 3-phase
- Input Frequency: 50/60Hz
- Output Frequency: 0.1-599Hz
- Integrated EMC filter (C2)
- Control Type: V/F, Sensorless Vector, Synchronous motor control
- Protection: IP20
- Integrated Safe Torque Off (STO)
- Ambient Temperature: -10°C to +50°C (without derating)
- Communication: Modbus, CANopen
- Conformity: CE, UL, cUL, EAC
- Dimensions (H x L x W): 143mm x 153mm x 72mm
- Weight: 2.5 kg
Key Features
- 2.2kW (3HP) power rating
- Three-phase 400V input
- Compact design for easy panel integration
- Integrated EMC filter
- Advanced motor control for asynchronous and synchronous motors
- Integrated safety functions (STO: Safe Torque Off)
- Robust performance in harsh environments
- Flexible connectivity with Modbus and CANopen communication
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces mechanical wear and maintenance needs
- Supports lower CO2 emissions through efficient motor control
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal ATV320 2.2KW 400V 3PH Compact VSD (SCHATV320U22N4C) is available for immediate purchase. Ideal for industrial automation, motor control, and energy-efficient applications.
