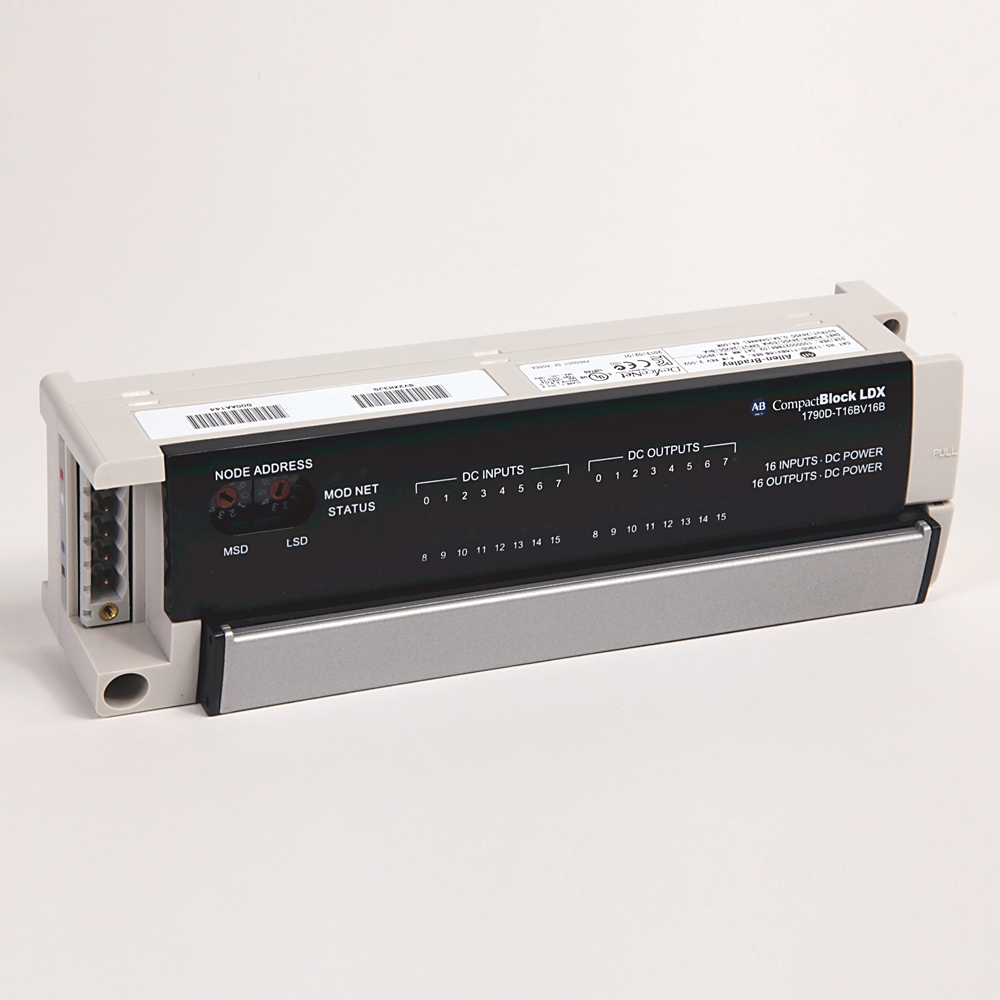

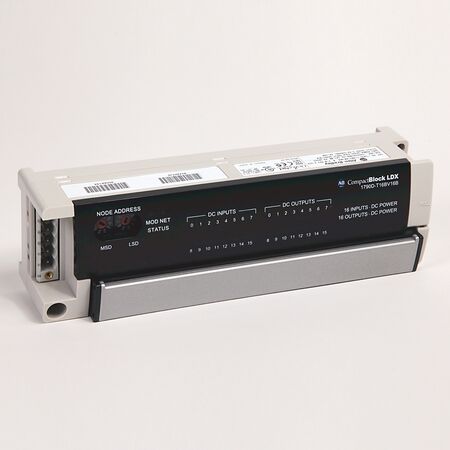

COMPACTBLOCK LDX I O DNET Base 16DI 16DO 24V DC Sink Screw Terminal Connections by Allen-Bradley

BRAND: Allen-Bradley
SKU: 1790DT16BV16V
$2,717.30 List price: $3,386.10
+ −
30 Days Return Electricians Unlock Trade Access
The COMPACTBLOCK LDX I/O DNET Base 16DI/16DO is designed for industrial automation control systems, featuring 16 digital inputs and 16 digital outputs with a 24V DC sink type. Ideal for manufacturing process control and machine monitoring, this module supports DeviceNet communication and ensures secure wiring with screw terminal connections.

Alternatively Known As: COMPACTBLOCK LDX I/O Module, DeviceNet I/O Base, 16DI/16DO I/O Module

Technical Specifications
  • Input Voltage: 24V DC
  • Input Type: Sink
  • Number of Digital Inputs: 16
  • Number of Digital Outputs: 16
  • Connection Type: Screw terminals
  • Communication Protocol: DeviceNet
  • Compatible with COMPACTBLOCK LDX I/O systems
  • Dimensions (H x L x W): 80mm x 150mm x 120mm
  • Weight: 1.5 kg
Key Features
  • 16 digital inputs and 16 digital outputs
  • 24V DC sink type input/output
  • Screw terminal connections for secure wiring
  • Designed for use with COMPACTBLOCK LDX I/O systems
  • Supports DeviceNet communication protocol
Professional Installation Requirements
  • Installation by a qualified electrician or automation technician is required to ensure compliance with electrical standards and proper system integration.
Applications
  • Industrial automation control systems
  • Manufacturing process control
  • Factory assembly lines
  • Machine monitoring and control
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Reduces wiring complexity and material waste with integrated I/O
  • Supports efficient industrial automation to optimize energy use
Warranty Information

Standard manufacturer warranty of 1 year against defects.

Available Now

The Allen-Bradley COMPACTBLOCK LDX I/O DNET Base 16DI/16DO 24V DC Sink Screw module is available for immediate purchase, ideal for industrial automation and control system applications.
