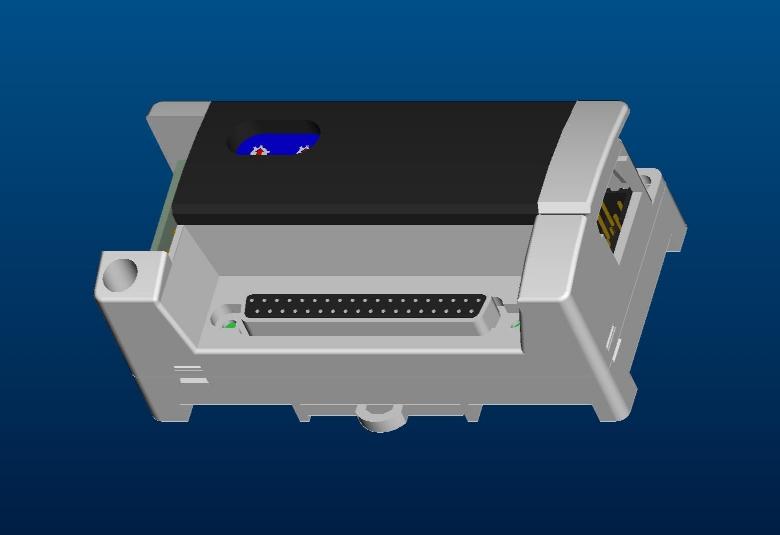

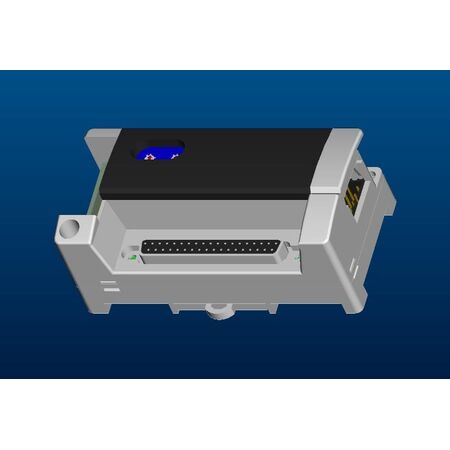

COMPACTBLOCK LDX I O Expansion Module 16 Digital Outputs 24V DC Operation DSHELL Connector by Allen-Bradley

BRAND: Allen-Bradley
SKU: 17900B16X
$1,112.40 List price: $1,386.20
+ −
30 Days Return Electricians Unlock Trade Access
The COMPACTBLOCK LDX I/O Expansion Module features 16 digital outputs, operating at 24V DC for reliable performance in industrial automation systems. Designed for seamless integration, this module is perfect for manufacturing process control and machine monitoring, enhancing system efficiency and reducing energy waste.

Alternatively Known As: I/O Expansion Module, Digital Output Expansion, COMPACTBLOCK LDX Expansion, 16DO Expansion Module

Technical Specifications
  • Digital Outputs: 16 channels
  • Operating Voltage: 24V DC
  • Connector Type: DSHELL
  • Module Type: I/O Expansion
  • Compatibility: COMPACTBLOCK LDX series
  • Dimensions (H x L x W): 50mm x 120mm x 150mm
  • Weight: 1.2 kg
Key Features
  • 16 digital outputs (DO) for expanded control capabilities
  • Operates at 24V DC for reliable industrial performance
  • DSHELL connector for secure and robust connections
  • Compact design for easy integration into existing systems
Professional Installation Requirements
  • Installation should be performed by a qualified industrial electrician or automation technician to ensure compliance with electrical standards and system integration.
Applications
  • Industrial automation systems
  • Manufacturing process control
  • Machine control and monitoring
  • Factory automation
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances system efficiency by enabling precise control and reducing energy waste
  • Supports modular expansion reducing the need for full system replacements
Warranty Information

Standard manufacturer warranty of 1 year against defects.

Available Now

The Allen-Bradley COMPACTBLOCK LDX I/O Expansion 16DO 24V DC DSHELL is available for immediate purchase, ideal for industrial automation and control system expansions.
