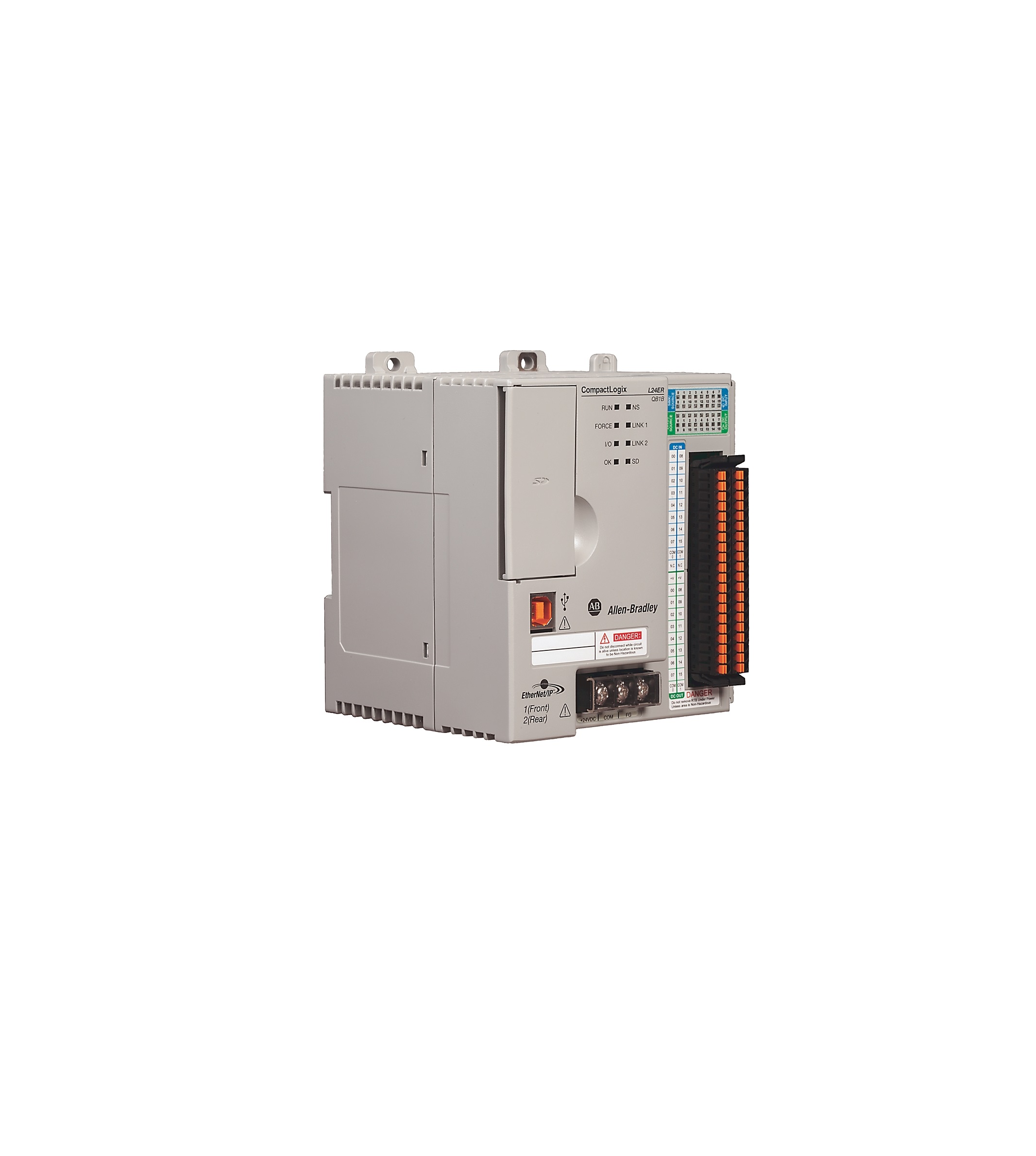

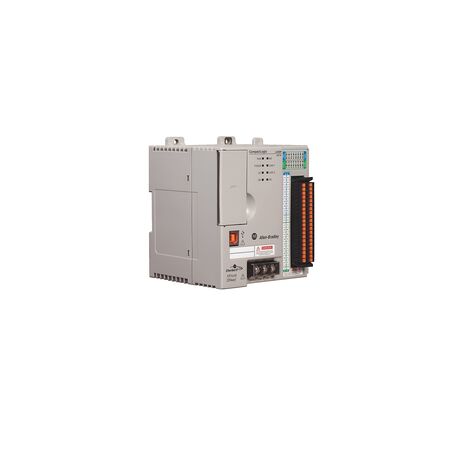

CompactLogix 5370 L2 Controller | 750KB Memory | 16 DC Inputs & Outputs | 24V DC Power by Allen-Bradley
The CompactLogix 5370 L2 Controller features 750KB program memory and 16 DC inputs and outputs—ideal for industrial automation control systems. Built for manufacturing and machine control, it includes a 24V DC embedded power supply and supports up to 4 expansion modules for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CompactLogix 5370 L2 Controller | 750KB Memory | 16 DC Inputs & Outputs | 24V DC Power by Allen-Bradley
Brand: Allen-Bradley
SKU: 1769-L24ER-QB1B
Alternatively Known As: CompactLogix 5370 L2 Controller, 1769 L24ER QB1B, Allen-Bradley CompactLogix Controller
Technical Specifications
- Memory: 750KB program memory
- Inputs: 16 DC inputs
- Outputs: 16 DC outputs
- Expansion: Supports up to 4 1769 I/O modules
- Communication: 2 EtherNet/IP ports with Device Level Ring capability
- Connections: Supports 8 EtherNet/IP and 120 TCP connections
- Power Supply: 24V DC embedded
- Storage: Includes 1GB SD card, supports up to 2GB SD card
- USB: 1 USB port
- Dimensions (H x L x W): 130mm x 70mm x 90mm
- Weight: 1.5 kg
Key Features
- 2 EtherNet/IP ports with Device Level Ring (DLR) capability
- 750KB memory for program storage
- 16 DC inputs and 16 DC outputs
- Supports up to 4 1769 I/O expansion modules
- Supports 8 EtherNet/IP and 120 TCP connections
- 24V DC input embedded power supply
- Includes 1GB SD card, supports up to 2GB SD card
- 1 USB port for connectivity
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is recommended to ensure compliance with electrical standards and optimal system performance.
Applications
- Industrial automation control systems
- Manufacturing process control
- Machine control and monitoring
- Factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient embedded power supply reduces power consumption
- Supports device level ring for network redundancy minimizing downtime
Warranty Information
1 year warranty covering manufacturing defects and hardware failures.
Available Now
This product available now for immediate purchase.
