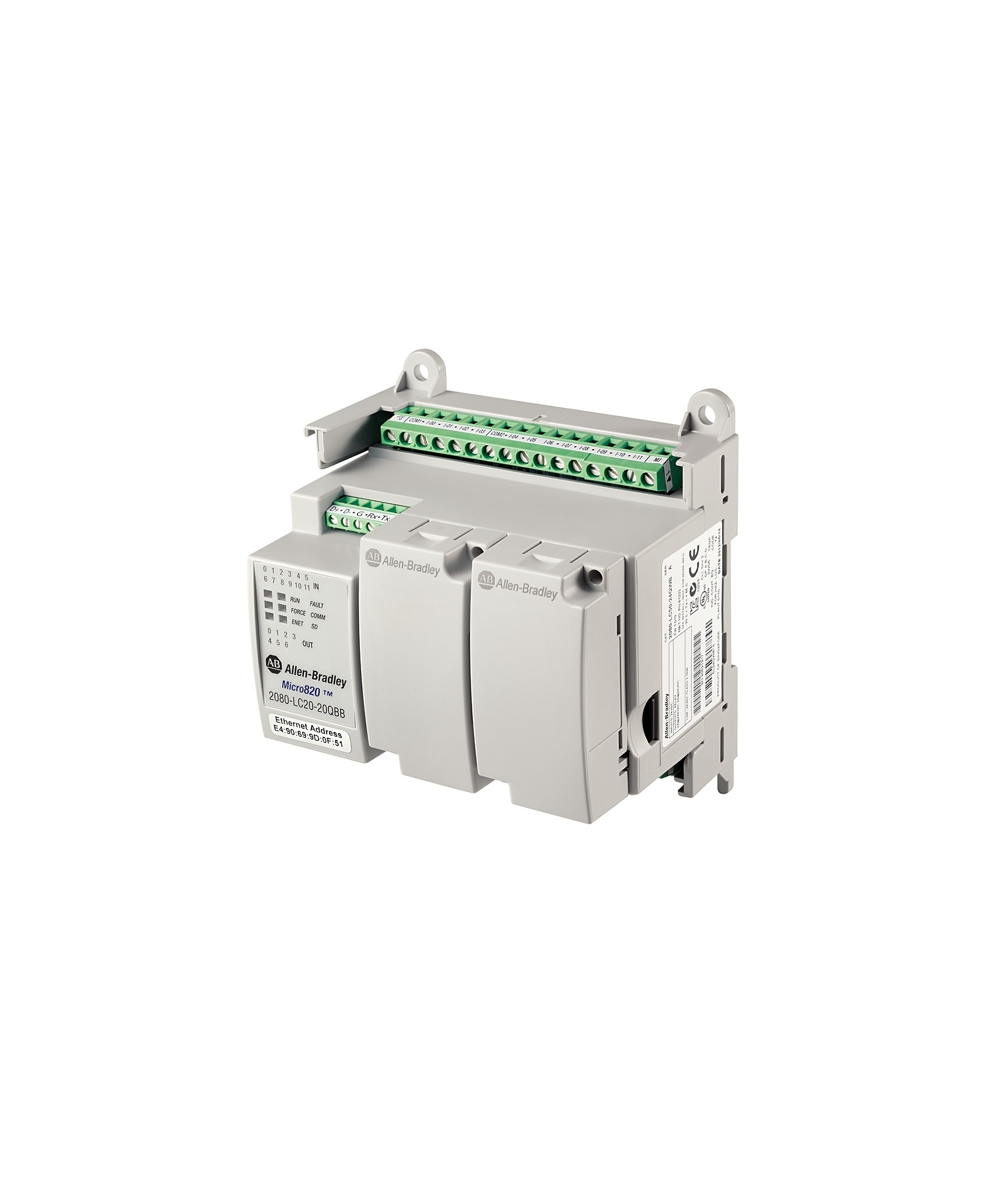

CompactLogix Controller with 12 Inputs & Ethernet Port | 4 Analog Inputs | 7 Outputs by Allen-Bradley
CompactLogix controller featuring 12 digital inputs and 4 configurable analog inputs—ideal for industrial automation systems. Built for manufacturing process control, with embedded Ethernet communication and MicroSD support for data logging.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CompactLogix Controller with 12 Inputs & Ethernet Port | 4 Analog Inputs | 7 Outputs by Allen-Bradley
Brand: Allen-Bradley
SKU: 2080-LC20-20QBBK
Alternatively Known As: Allen-Bradley CompactLogix Controller, 2080-LC20-20QBBK PLC, Allen-Bradley Automation Controller
Technical Specifications
- 12 24V DC digital inputs
- 4 configurable analog inputs with thermistor voltage reference output
- 7 24V DC source outputs
- 1 analog output
- Embedded Ethernet communication port
- RS-232/485 non-isolated serial port
- Embedded real-time clock (RTC)
- MicroSD card support for data logging and program storage
- 2 plug-in slots for modular expansion
- Dimensions (H x L x W): 150mm x 75mm x 100mm
- Weight: 1.5 kg
Key Features
- 12 24V DC Inputs
- 4 configurable analog inputs with thermistor voltage reference output
- 7 24V DC Source Outputs
- 1 Analog Output
- Embedded Ethernet Port
- RS-232/485 non-isolated Serial port
- Embedded Real-Time Clock (RTC)
- MicroSD Card support
- 2 Plug-In slots for expansion
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is recommended to ensure compliance with electrical standards and optimal system integration.
Applications
- Industrial automation control systems
- Manufacturing process control
- Embedded Ethernet and serial communication applications
- Data logging and real-time control with MicroSD support
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption in industrial automation.
- Supports precise control to minimize waste and optimize resource use.
Warranty Information
1 year warranty covering manufacturing defects and hardware failures.
Available Now
This product available now for immediate purchase.
