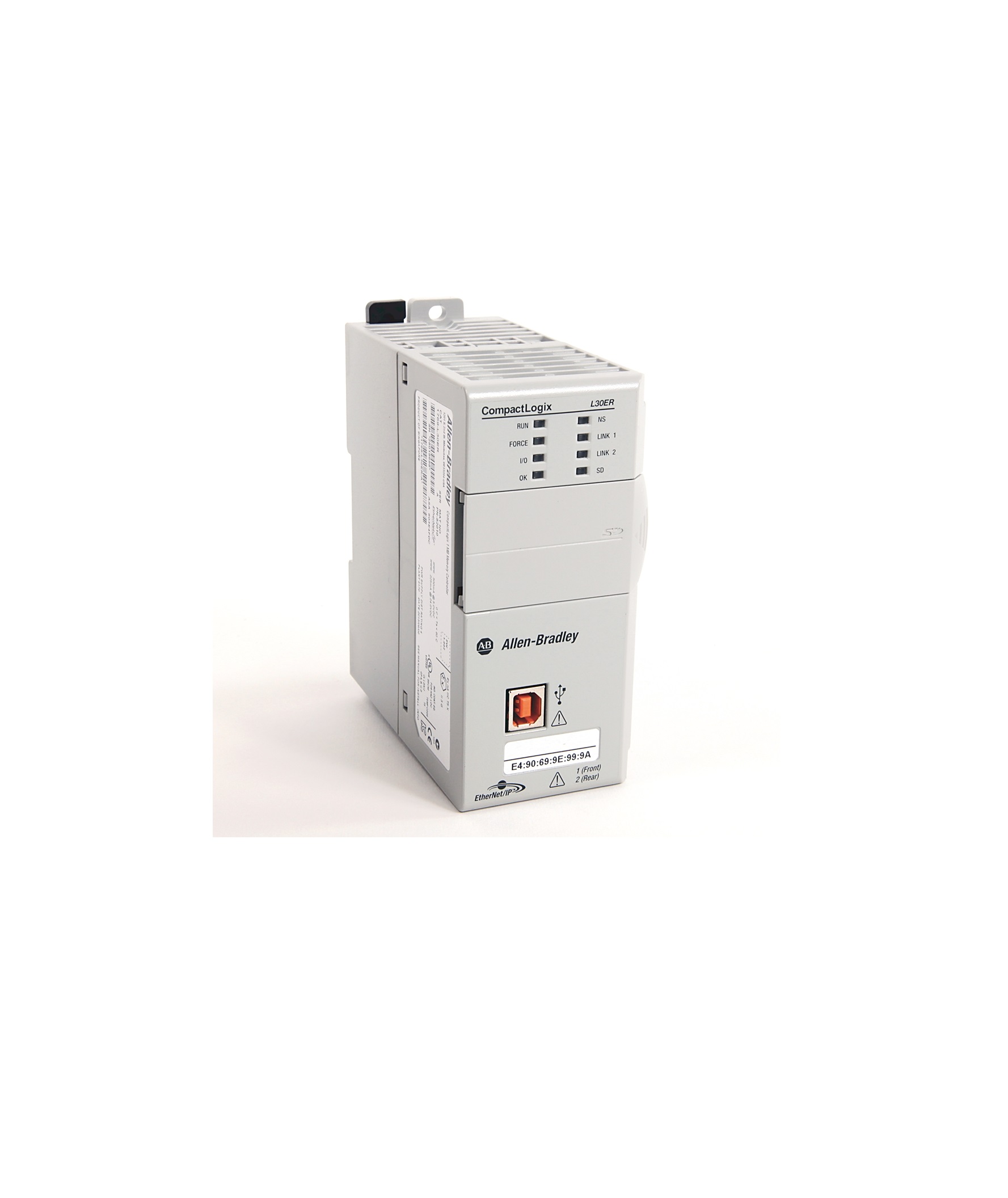

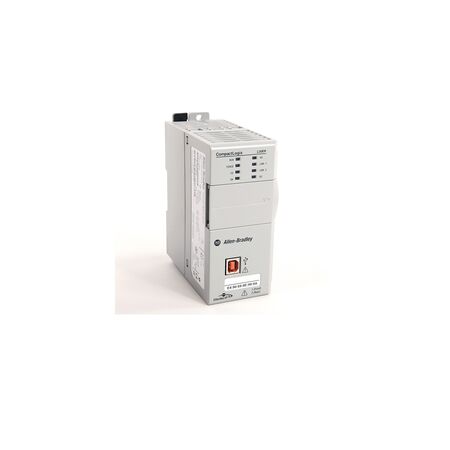

CompactLogix L3 Controller | 1MB Memory | Dual Ethernet with DLR | 8 I/O Expansion by Allen-Bradley

BRAND: Allen-Bradley
SKU: 1769-L30ER-NSE
$4,013.90 List price: $4,451.10
+ −
30 Days Return Delivery Options
The CompactLogix L3 Controller features 1MB memory and dual Ethernet ports with DLR capability—ideal for industrial automation control systems. Built for manufacturing and factory automation, it supports up to 8 I/O expansion modules and includes a 1GB SD card for data storage.

Product Name/Title: CompactLogix L3 Controller | 1MB Memory | Dual Ethernet with DLR | 8 I/O Expansion by Allen-Bradley

Brand: Allen-Bradley

SKU: 1769-L30ER-NSE

Alternatively Known As: CompactLogix L3 Controller, 1769-L30ER, Allen-Bradley L3 Controller

Technical Specifications
  • Memory: 1MB program memory
  • Ethernet: Dual Ethernet ports with DLR capability
  • I/O Expansion: Supports up to 8 I/O modules
  • Ethernet IP Nodes: Supports up to 16 nodes
  • Storage: Includes 1GB SD card, supports up to 2GB
  • RTC: No supercapacitor for real-time clock
  • Dimensions (H x L x W): 150mm x 120mm x 100mm
  • Weight: 1.5 kg
Key Features
  • Dual Ethernet with Device Level Ring (DLR) capability for network redundancy
  • 1MB memory for program and data storage
  • Supports 8 I/O expansion modules
  • Supports up to 16 Ethernet IP nodes
  • Includes 1GB SD card, expandable up to 2GB
  • No supercapacitor for real-time clock (RTC)
Professional Installation Requirements
  • Installation by a qualified industrial electrician or automation technician is recommended to ensure proper setup and compliance with safety standards.
Applications
  • Industrial automation control systems
  • Manufacturing process control
  • Factory automation and monitoring
  • Machine control and data acquisition
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
  • AS/NZS 3123 – Industrial Plugs and Socket-Outlets
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient design reduces power consumption in industrial environments
  • Supports network redundancy to minimize downtime and waste
Warranty Information

1 year warranty covering manufacturing defects and hardware failures.

Available Now

This product available now for immediate purchase.
