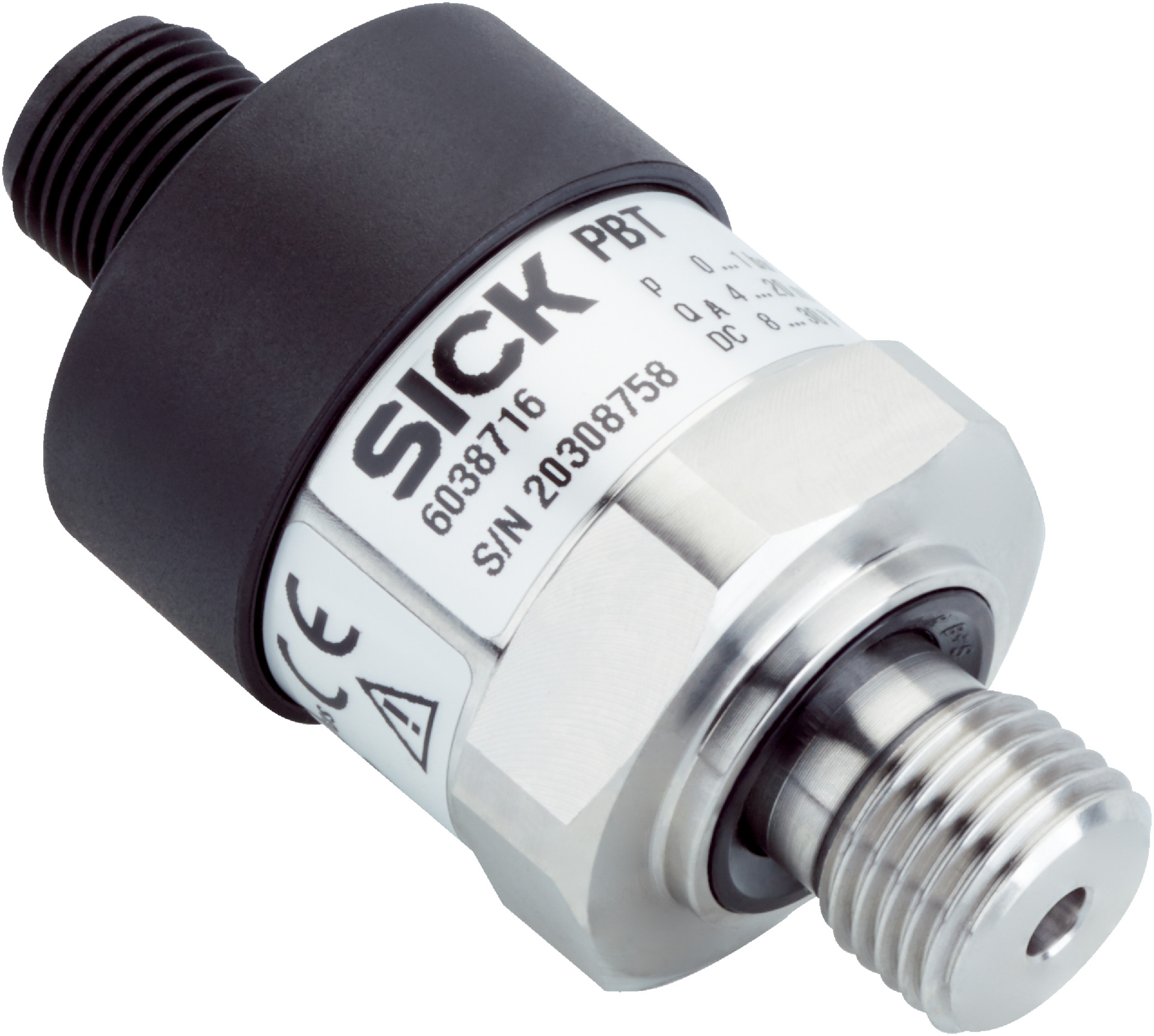

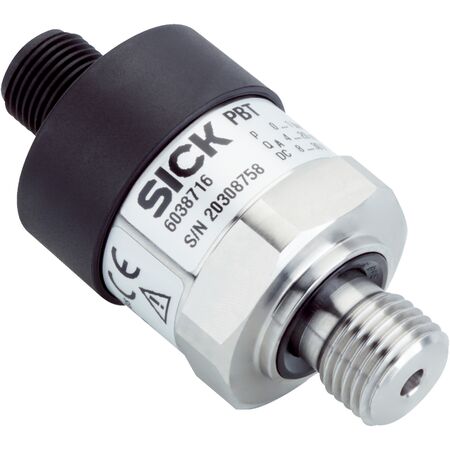

Compound Pressure Sensor | –0.25 to 0 Bar | 4-20mA Output | IP67 Rated | by SICK
The Compound Pressure Sensor is designed for precise measurement of compound pressure in the range of –0.25 bar to 0 bar, making it ideal for industrial process control of liquid and gaseous media. With a fast response time of less than 4 ms and an IP67 rated enclosure, this sensor ensures durability and reliability in demanding environments, perfect for automation systems and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –0.25 bar to 0 bar
- Pressure type: Compound pressure
- Process temperature: 0 °C to +80 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Power consumption: Max 25 mA for current output
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel
- Enclosure rating: IP67
- Electrical safety: Overvoltage protection 32-36 V DC, short-circuit and reverse polarity protection
- Response time: < 4 ms
- Accuracy: ≤ ±1% of span
- Non-linearity: ≤ ±0.5% of span
- Hysteresis: ≤ 0.16% of span
- Non-repeatability: ≤ 0.1% of span
- Long-term drift: ≤ 0.1% of span per year
- MTTF: 815 years
- Shock load: 500 g
- Vibration load: 10 g (20 g optional)
- Dimensions (H x L x W): 60mm x 60mm x 25mm
- Weight: 0.1 kg
Key Features
- Measures compound pressure in the range of –0.25 bar to 0 bar
- Suitable for liquid and gaseous media
- Stainless steel 316L wetted parts and housing for durability
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy with ≤ ±1% of span including non-linearity and hysteresis
- Fast response time of less than 4 ms
- IP67 rated enclosure for protection against dust and water
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- Operating temperature range from 0 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise compound pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption contributes to energy efficiency
- High accuracy reduces process waste and improves system efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBT-CBX25SG1SSNAMA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable compound pressure measurement.
