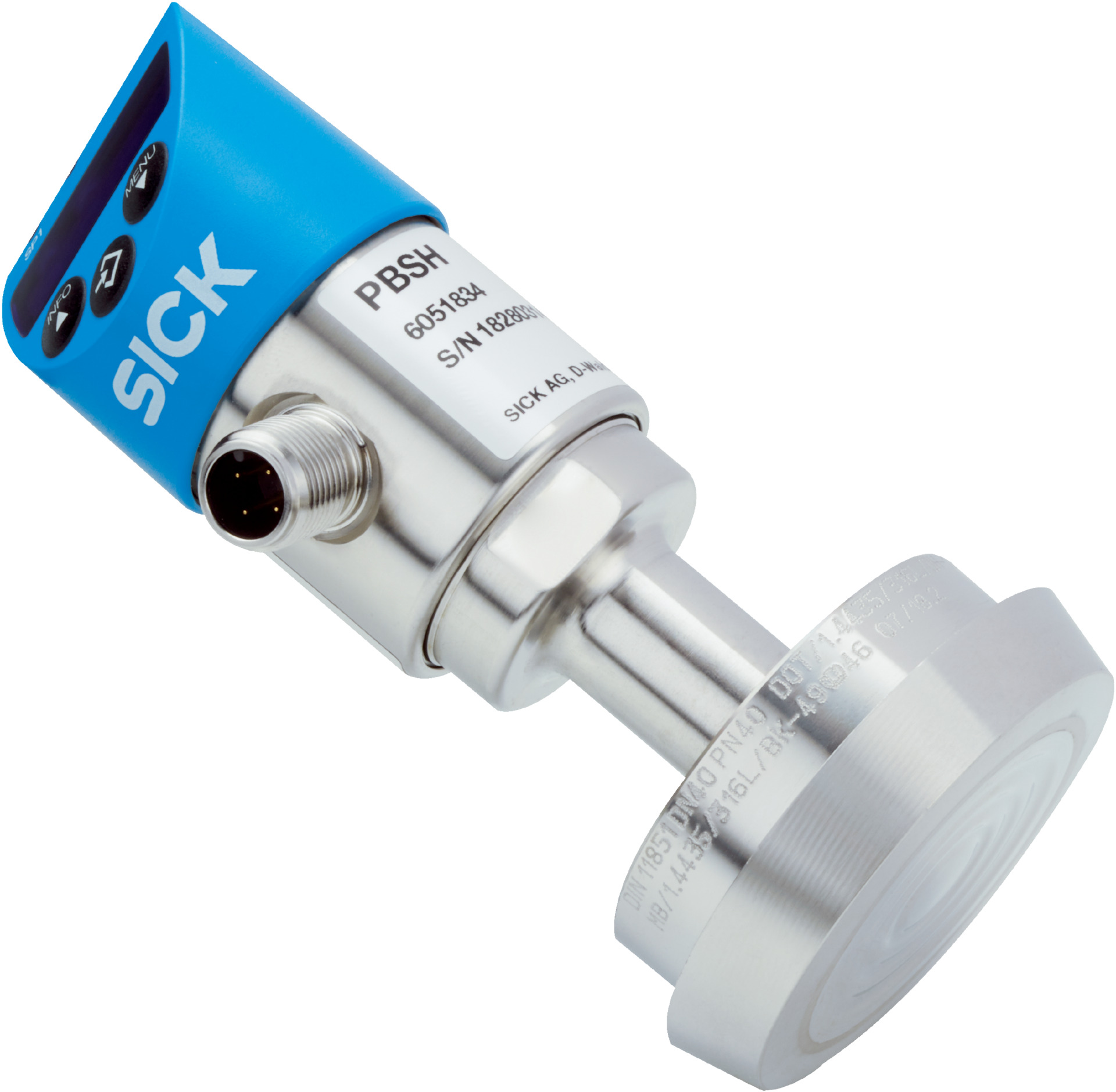

Compound Pressure Sensor | -1 to 0 Bar Range | FDA Compliant | IP65 & IP67 Rated | by SICK
The Compound Pressure Sensor is designed for precise measurement of liquid and gaseous media pressure, featuring a measuring range from -1 bar to 0 bar. With a high accuracy of ≤ ±1% and an FDA compliant internal fluid, it's perfect for industrial process control and applications in the food and pharmaceutical industries. Built with durable 316L stainless steel and IP65/IP67 enclosure ratings, this sensor ensures reliability and safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -1 bar to 0 bar
- Pressure type: Compound pressure
- Output signal: 1 x PNP + 4 mA to 20 mA
- Process temperature range: -20 °C to +100 °C
- Accuracy: ≤ ±1% of span including non-linearity and hysteresis
- Response time: 3 ms
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max. 70 mA
- Enclosure rating: IP65 and IP67
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts: 316L stainless steel
- Display: 14-segment blue LED, 4 digits, electronically turnable by 180°
- Electrical safety: Overvoltage, short-circuit, and reverse polarity protection
- Shock load: 50 g IEC 60068-2-27
- Vibration load: 10 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 150mm x 80mm
- Weight: 1.2 kg
Key Features
- Measures compound pressure from -1 bar to 0 bar
- Output signal: 1 x PNP + 4 mA to 20 mA
- Rotatable housing with 330° display rotation
- 14-segment blue LED display with 4 digits, electronically turnable by 180°
- High accuracy ≤ ±1% of span including non-linearity and hysteresis
- Overpressure safety 2-fold
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is medical white oil, FDA compliant
- Supply voltage 15 V DC to 35 V DC with max power consumption 70 mA
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 and IP67
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring compound pressure measurement
- Food and pharmaceutical industry applications due to FDA compliant internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption design minimizes energy use
- FDA compliant internal fluid ensures safe use in food and pharmaceutical environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PBSH-CB1X0S55S0BMA0Z compound pressure sensor is available for immediate purchase, ideal for industrial process control and food industry applications.
