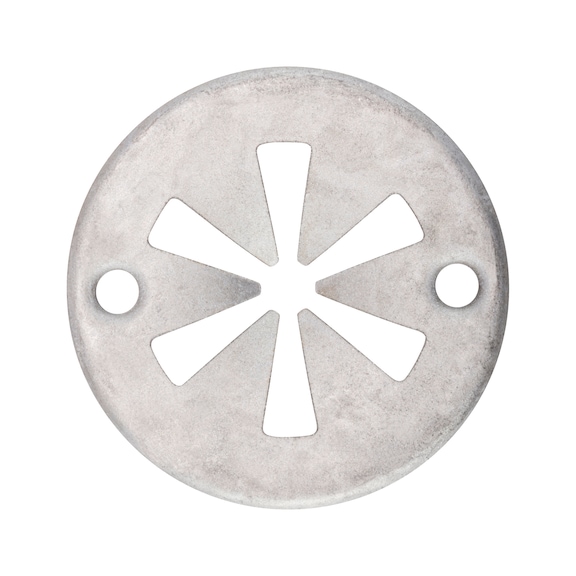

Concave Star Shaped Clamping Ring | C67S Steel | Flake Zinc Silver Finish | @Pack of 10 | by Wurth
The Concave Star Shaped Clamping Ring is crafted from durable C67S steel with a flake zinc silver finish, making it ideal for mechanical fastening in automotive and industrial applications. Quick and easy to mount by hand, this clamping ring is perfect for attaching rods, shafts, and threaded stud bolts, ensuring a neat and secure fit in various assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Concave Star Shaped Clamping Ring | C67S Steel | Flake Zinc Silver Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 501101649
Alternatively Known As: Concave Clamping Ring, Star Shape Clamping Ring, Shaft Clamping Ring, Threaded Stud Bolt Ring
Technical Specifications
- Material: C67S steel
- Surface finish: Flake zinc silver
- Diameter (A): 30.00 mm
- Height (B): 3.00 mm
- Material thickness: 0.40 mm
- Suitable for screw diameter: 5.0 mm
- Min./max. drill hole diameter: 5.00 mm
- Dimensions (H x L x W): 3mm x 30mm x 30mm
- Weight: 0.02 kg
Key Features
- Concave star-shaped clamping ring
- Quick and easy to mount by hand
- Achieves a neat finish
- Suitable for screw diameter 5.0 mm
Professional Installation Requirements
- No special tools required; quick and easy to mount by hand. Recommended for installation by trained personnel for optimal fit and safety.
Applications
- Attaching rods, shafts, and threaded stud bolts in mechanical assemblies
- Used in automotive, industrial, and machinery fastening applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc flake silver surface reduces corrosion and extends product life
- Material efficiency reduces waste in mechanical fastening
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Clamping Ring with concave star shape is available now for immediate purchase. Ideal for mechanical fastening in automotive and industrial applications.
