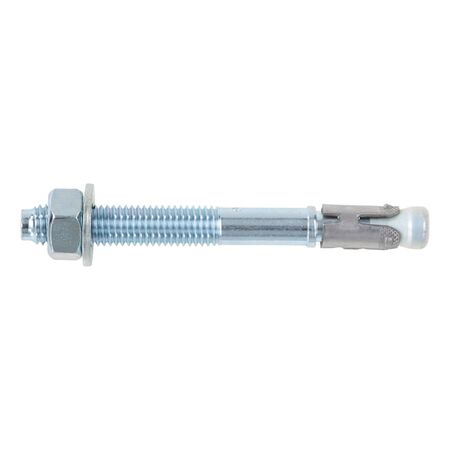

Concrete Anchor Bolt M12 | High Load Capacity | Zinc Plated Steel | @Pack of 25 | by Wurth
Concrete Anchor Bolt M12 is designed for high load applications, featuring a robust zinc-plated steel construction that ensures corrosion resistance. Ideal for heavy steel structures, fence systems, and post support brackets, this anchor bolt offers immediate load-bearing capacity with no waiting times, making installation quick and efficient.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M12
- Anchor length: 110 mm
- Attachment height: 15 mm
- Max. attachment height reduced: 35 mm
- Effective anchoring depth: 70 mm
- Effective anchoring depth reduced: 50 mm
- Width across flats: 19 mm
- Nominal drill-bit diameter: 12 mm
- Drill hole depth: 90 mm
- Drill hole depth reduced: 70 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring: 45 Nm
- Through-hole in component to be connected: 14 mm
- Approval: ETA-99/0011
- Fire resistance: R30, R60, R90, R120 (M8-M16) per ETA-99/0011 and DIN 4102-2
- Dimensions (H x L x W): 110mm x 110mm x 19mm
- Weight: 0.5 kg
Key Features
- Bolt anchor for high loads in cracked and non-cracked concrete
- Steel, zinc-plated for corrosion resistance
- Immediate load-bearing capacity with no waiting times
- Time-saving in-place installation
- Reduced effective anchorage depth
- Minimised drilling for time-saving
- Versatile applications
- Proof of Performance ETA-99/0011 for individual fixing points
- Seismic performance category C1 and C2 (M8-M20)
- Fire resistance ratings F30, F60, F90, F120 according to DIN 4102-2:1977-09
- Fire resistance R30, R60, R90, R120 included in ETA-99/0011
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchoring and compliance with safety standards.
Applications
- Heavy steel structures
- Fence systems
- Post support brackets
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating extends product life, reducing waste
Warranty Information
Warranty details available upon request from Wurth, typically covering manufacturing defects.
Available Now
The Wurth Fixanchor W FAZ S ANC W FAZ S A2K M12X110 is available for immediate purchase, ideal for heavy steel structures, fence systems, and post support brackets.
