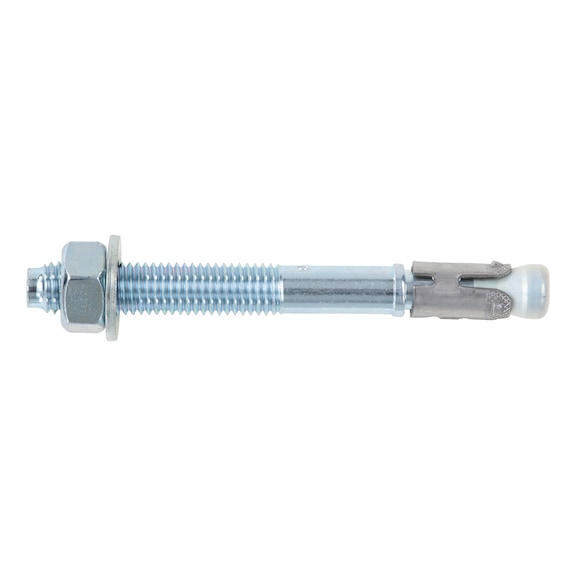

Concrete Anchor Bolt M8 | Zinc Plated | High Load Capacity | @Pack of 100 | by Wurth
Concrete Anchor Bolt M8 is designed for high load applications, featuring a zinc-plated finish for enhanced corrosion resistance. Ideal for heavy steel structures, fence systems, and post support brackets, this anchor bolt offers immediate load-bearing capacity with no waiting times, ensuring a quick and efficient installation process.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M8
- Anchor length: 95 mm
- Attachment height: 30 mm
- Max. attachment height reduced: 41 mm
- Effective anchoring depth: 46 mm
- Effective anchoring depth reduced: 35 mm
- Width across flats: 13 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 60 mm
- Drill hole depth reduced: 49 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring: 20 Nm
- Through-hole in component to be connected: 9 mm
- Approval: ETA-99/0011
- Fire resistance: F30, F60, F90, F120 (M8-M16) according to DIN 4102-2
- Dimensions (H x L x W): 95mm x 95mm x 13mm
- Weight: 0.2 kg
Key Features
- Bolt anchor for high loads in cracked and non-cracked concrete
- Steel, zinc-plated for corrosion resistance
- Immediate load-bearing capacity with no waiting times
- Time-saving in-place installation
- Reduced effective anchorage depth
- Minimised drilling for faster installation
- Versatile applications
- Proof of Performance ETA-99/0011 for individual fixing points
- Seismic performance category C1 and C2 (M8-M20)
- Fire resistance ratings F30, F60, F90, F120 according to DIN 4102-2
- Fire resistance R30, R60, R90, R120 included in ETA-99/0011
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer guidelines and safety standards to ensure proper anchorage and load capacity.
Applications
- Heavy steel structures
- Fence systems
- Post support brackets
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
The Wurth Fixanchor W FAZ S ANC W FAZ S A2K M8X95 is available for immediate purchase, ideal for heavy steel structures, fence systems, and post support brackets.
