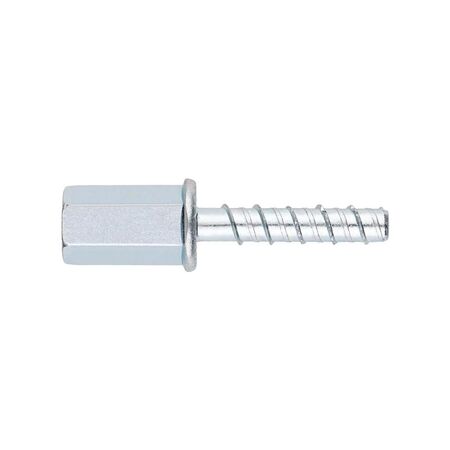

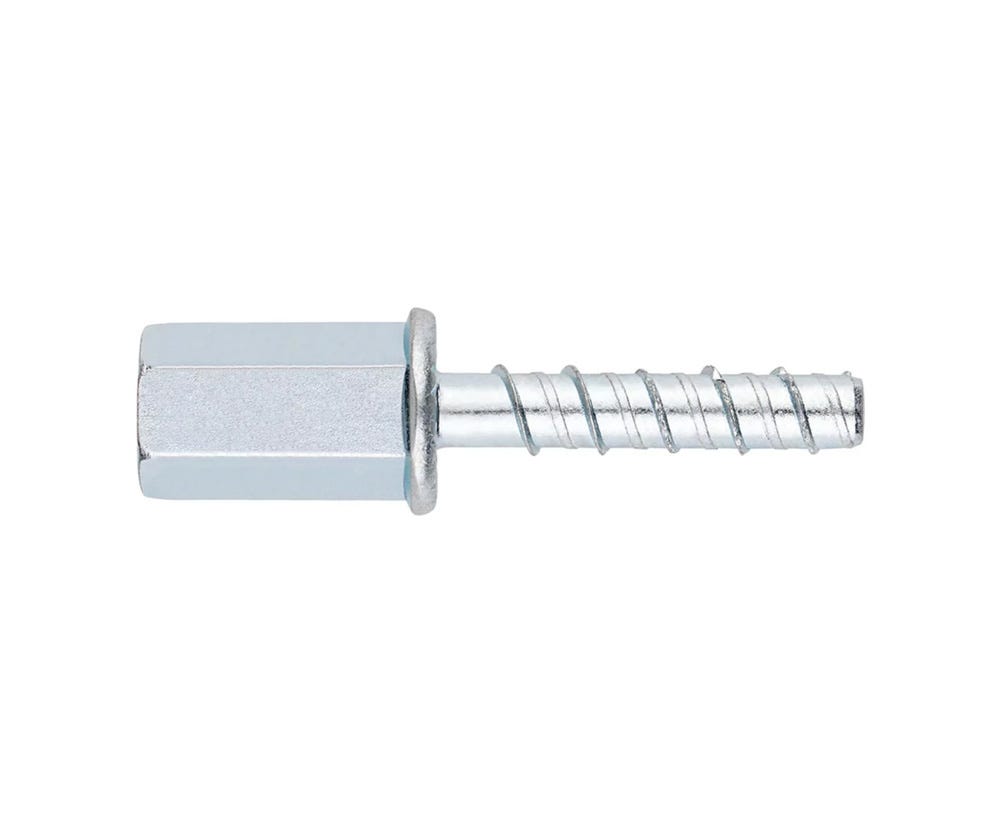

Concrete Fixing Screw M8-10 FEM 55MM | Fire Resistance R30-R120 | Removable Anchor | @Each of 1 | by Cabac
The Concrete Fixing Screw M8-10 FEM 55MM is designed for reliable anchoring in both cracked and non-cracked concrete. With a fire resistance class of R30-R120 and compatibility with M8 or M10 threaded rods, this removable anchor is perfect for temporary fixings in construction and structural applications. Ideal for seismic design category C1 compliant installations, it ensures safety and compliance in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Concrete Fixing Screw M8-10 FEM 55MM | Fire Resistance R30-R120 | Removable Anchor | @Each of 1 | by Cabac
Brand: Cabac
SKU: BSZM6X55EG
Alternatively Known As: Concrete fixing screw M8 M10, Concrete anchor screw, Threaded rod concrete anchor, Removable concrete anchor
Technical Specifications
- Hole diameter required: 6mm with masonry bit
- Fire resistance class: R30-R120
- Suitable for use in cracked and non-cracked concrete
- Compatible with M8 or M10 threaded rods
- Seismic design category: C1 approved
- Removable anchor type
- Dimensions (H x L x W): 55mm x 55mm x 10mm
- Weight: 0.1 kg
Key Features
- Fire resistance class R30-R120 for anchorage design under fire exposure
- ETA assessed for anchoring in cracked and non-cracked concrete
- Compatible with M8 or M10 threaded rods
- Removable anchor ideal for temporary fixings
- Approved for use in seismic design category C1
Professional Installation Requirements
- Installation requires drilling a 6mm hole with a masonry bit and screwing the insert in place; professional installation recommended for safety and compliance.
Applications
- Suspending threaded rods from concrete ceilings
- Anchoring in cracked and non-cracked concrete
- Temporary fixings in construction and structural applications
- Seismic design category C1 compliant installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Removable design reduces waste by allowing reuse in temporary fixings
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific terms.
Available Now
The Cabac CONC SCREW M8-10 FEM 55MM is available for immediate purchase, ideal for structural and seismic anchoring applications.
