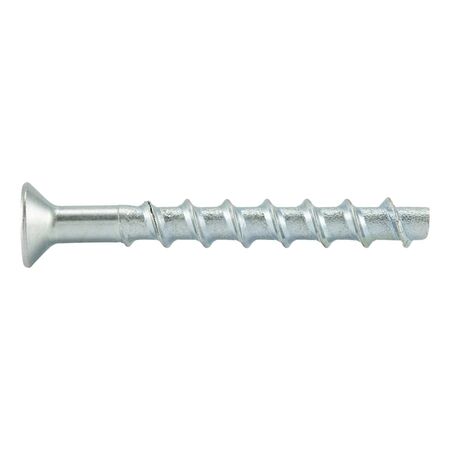

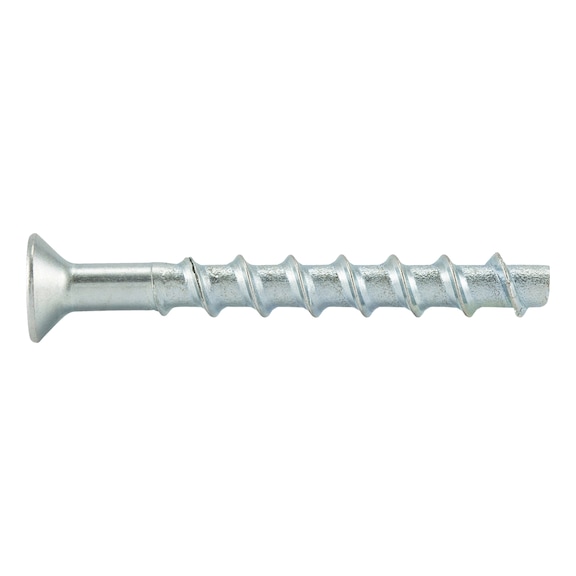

Concrete Screw with Countersunk Head W-BS/S | 6mm Anchor Size | Zinc-Plated Steel | High Load Capacity | @Pack of 100 | by Wurth
Concrete screws with a countersunk head and 6mm anchor size are perfect for high-load applications in masonry and concrete. Made from durable zinc-plated steel, these screws ensure efficient installation and immediate load-bearing capacity. Ideal for flush-mount installations of railings and handrails, they offer flexibility with multiple anchorage depths, making them a reliable choice for construction professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 40 mm
- Attachment height: 5 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depth: 40 mm
- Embedding depth: 35 mm
- Head diameter: 13 mm
- Internal drive: TX30
- Head type: Countersunk head
- Material: Steel
- Through-hole diameter: 8.0 mm
- Surface finish: Zinc plated
- Type description: W-BS type SK
- Dimensions (H x L x W): 40mm x 40mm x 13mm
- Weight: 0.15 kg
Key Features
- Highest loads and efficient installation
- Flush-mount installation possible
- Zinc-plated steel for durability
- Extremely flexible application with up to three effective anchorage depths (size 6-10)
- Fastening adjustable up to two times after installation (size 6-10) for alignment
- Very low spacing and edge distances due to low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Proof of performance with European Technical Assessment ETA-16/0043 and ETA-23/0196
- Fire resistance ratings R30, R60, R90, R120
- Seismic action performance categories C1 and C2
Professional Installation Requirements
- Professional installation recommended to ensure correct anchorage depth and load capacity compliance.
Applications
- Anchorage in concrete and masonry
- Flush-mount installation of railings and handrails
- Construction and building fastening requiring high load capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements
- Efficient installation minimizes waste and resource use
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw with Countersunk Head W-BS/S 100 PCS is available for immediate purchase, ideal for construction and building fastening applications.
